Device Type	CD-ROM
Interface	ATAPI
Spin Rate	4x
Formats Supported	CD-XA (Mode 1 & Mode 2), CD-DA, CD-I, CD-ROM (Mode 2, Form 1 & Form 2), Photo-CD, Video CD, Audio CD

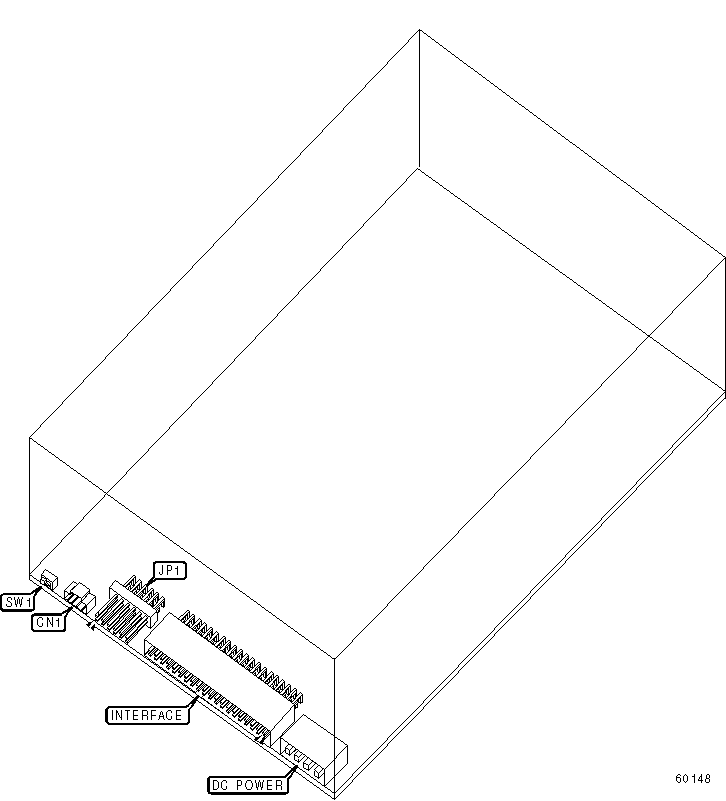

View	Top

CONNECTIONS
Function	Label
Audio line out	CN1

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Factory configured - do not alter	JP1/5	Open
»	Factory configured - do not alter	JP1/6	Open

ATAPI MASTER/SLAVE
Setting		JP1/1	JP1/2	JP1/3	JP1/4
	Single drive only	Open	Open	Open	Closed
	Master in two drive system	Open	Open	Closed	Open
»	Slave in two drive system	Open	Closed	Open	Open
	Cable Select	Closed	Open	Open	Open
