Device Type	CD-ROM
Interface	ATAPI
Spin Rate (Read/Write)	24x
Formats Supported Read	CD-DA, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD, Red & Yellow Book, CD-Extra, Karaoke CD

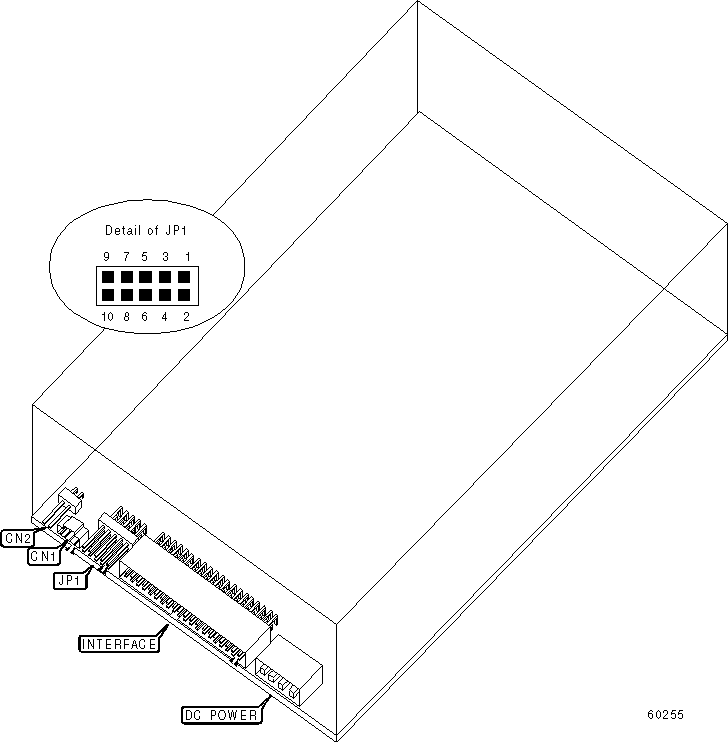

View	Top

CONNECTIONS
Function	Label	Function	Label
Analog audio out	CN1	Digital audio out	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter.	JP1/Pins 7 & 8	Unidentified
»	Factory configured - do not alter.	JP1/Pins 9 & 10	Unidentified

ATAPI MASTER/SLAVE
Setting		JP1
»	Drive is slave	Pins 3 & 4 closed
	Drive is master	Pins 1 & 2 closed
	Master/slave determined by cable select	Pins 5 & 6 closed
