NEC TECHNOLOGIES, INC.
CDR-1460A
|
Device Type |
CD-ROM |
|
Interface |
SCSI-2 |
|
Spin Rate |
8x |
|
Formats Supported Read |
CD-XA Mode 2 - Form 1 & 2, Enhanced CD, CD-Extra, CD-I (FMV), Video-CD, MPC-3, Photo-CD (single and multi-session) |
|

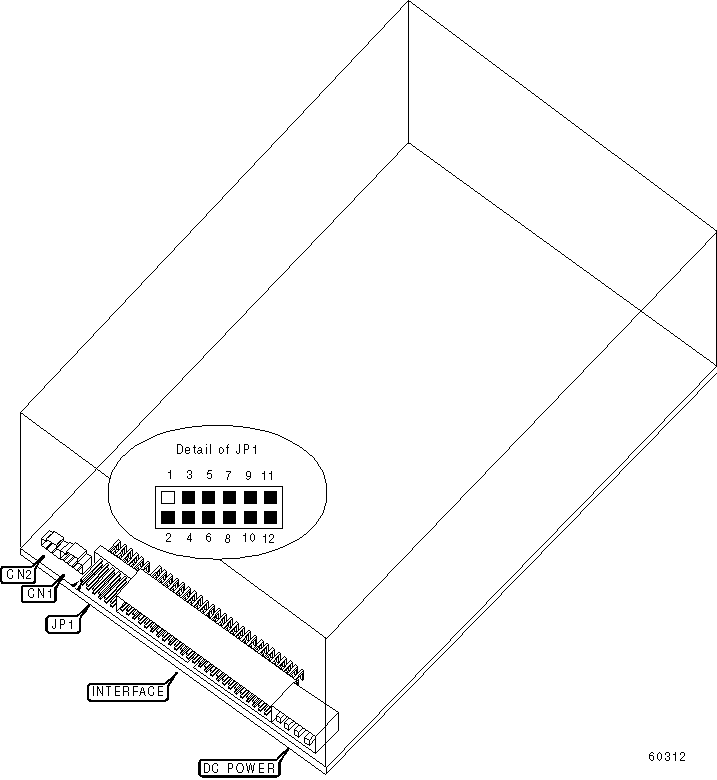

View |
Top |
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Analog audio out connector |
CN1 |
Digital audio out connector |
CN2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Factory configured - do not alter |
JP1/Pins 7 & 8 |
Open |
| » |
Termination enabled |
JP1/Pins 9 & 10 |
Closed |
|
Termination disabled |
JP1/Pins 9 & 10 |
Open | |
| » |
Factory configured - do not alter |
JP1/Pins 11 & 12 |
Open |
|
DRIVE SELECT ID | |||
|
Drive ID |
JP1/Pins 1 & 2 |
JP1/Pins 3 & 4 |
JP1/Pins 5 & 6 |
|
0 |
Open |
Open |
Open |
|
1 |
Closed |
Open |
Open |
|
2 |
Open |
Closed |
Open |
|
3 |
Closed |
Closed |
Open |
|
4 |
Open |
Open |
Closed |
|
5 |
Closed |
Open |
Closed |
|
6 |
Open |
Closed |
Closed |
|
7 |
Closed |
Closed |
Closed |
