Device Type

Internal CD-ROM

Interface

SCSI-2

Spin Rate (Read)

8x

Formats Supported Read

CD-XA, CD-DA, CD-I, CD-ROM (Mode 1), Photo-CD, Video CD, CD-Plus, CD-G

View

Top

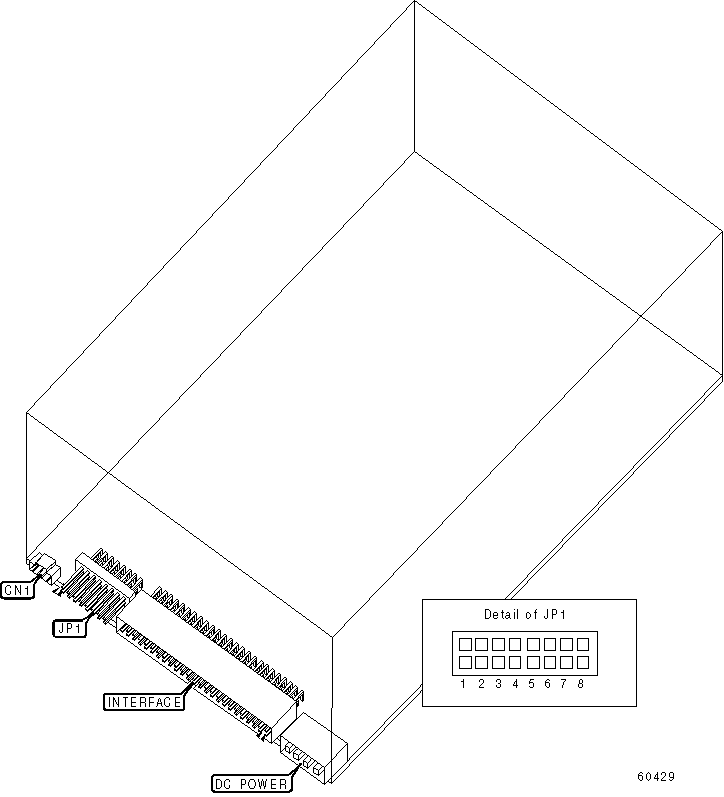

CONNECTIONS

Function

Label

Audio line out

CN1

USER CONFIGURABLE SETTINGS

Setting

Label

Position

» Factory configured - do not alter

JP1/4

Unidentified

» Sync Mode enabled

JP1/5

Open

Sync Mode disabled

JP1/5

Closed

» Data Block Size set at 2048

JP1/6

Open

Data Block Size set at 512

JP1/6

Closed

» Parity check enabled

JP1/7

Closed

Parity check disabled

JP1/7

Open

» Termination enabled

JP1/8

Closed

Termination disabled

JP1/8

Open

DRIVE SELECT ID

Drive ID

JP1/1

JP1/2

JP1/3

0

Open

Open

Open

1

Closed

Open

Open

2

Open

Closed

Open

3

Closed

Closed

Open

4

Open

Open

Closed

5

Closed

Open

Closed

6

Open

Closed

Closed

7

Closed

Closed

Closed
