Device Type	CD-ROM
Interface	SCSI-2
Spin Rate	4x
Formats Supported	Photo-CD, CD-DA, CD-ROM (Mode 1 & 2), CD-G, CD PLUS, CD-Bridge, CD-I (FMV), CD-I, Video-CD, Karaoke

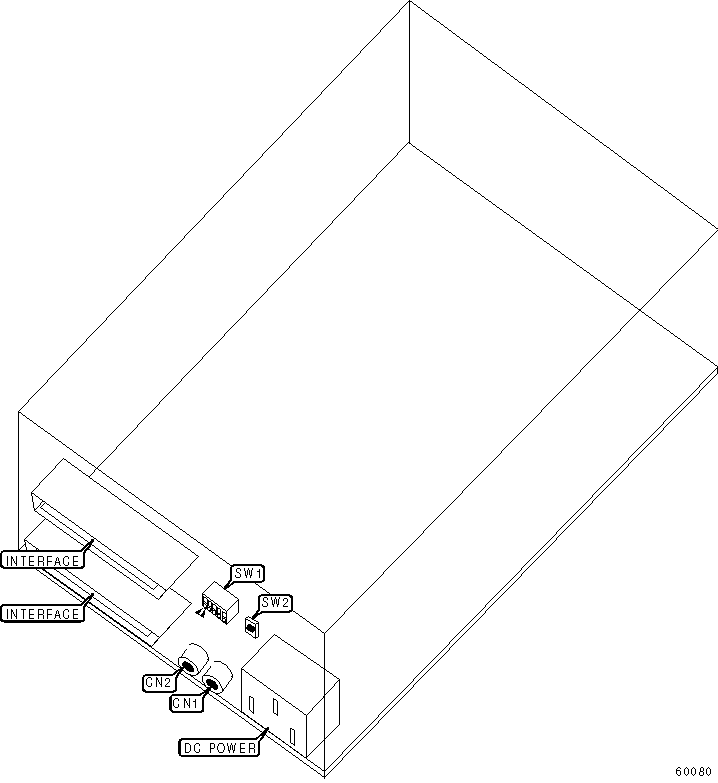

View	Top

CONNECTIONS
Function	Label	Function	Label
Audio out	CN1	Audio out	CN2

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Parity check disabled	SW1/1	Off
	Parity check enabled	SW1/1	On
»	Internal terminator not selected	SW1/2	Off
	Internal terminator selected	SW1/2	On
»	Test mode disabled	SW1/3	Off
	Test mode enabled - factory use only	SW1/3	On
»	2048 bytes/block selected	SW1/4	Off
	512 bytes/block selected	SW1/4	On
»	Allow insertion and removal of CD’s by command or eject button	SW1/5	Off
	Prevent insertion and removal of CD’s	SW1/5	On
	SCSI ID select	SW2	Unidentified
