PLEXTOR
PX-12CSE, PX-12TSE
|
Device Type |
CD-ROM |
|
Interface |
SCSI |
|
Size |
5.25 in. half height |
|
Spin Rate |
12X |
|
Formats Supported |
CD-ROM Mode 1, CD-DA, CD-I, CD-XA (Mode 2, Form 1, Form 2), Video CD, Photo CD, CD Plus, CD-G, Karaoke |
|
View |

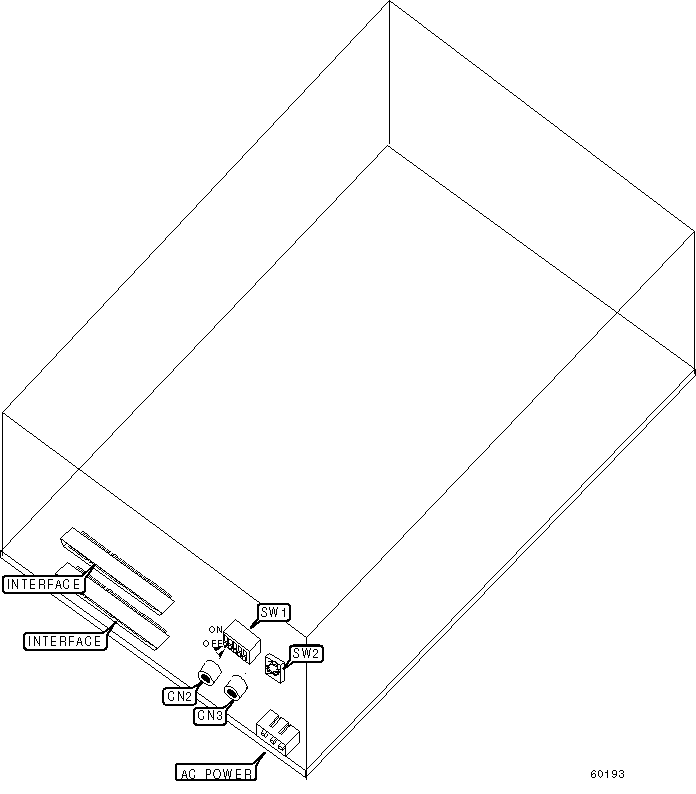

Top |
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Audio out - right channel |
CN2 |
Audio out - left channel |
CN3 |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Parity check enabled |
SW1/1 |
On |
|
Parity check disabled |
SW1/1 |
Off | |
| » |
SCSI termination enabled |
SW1/2 |
On |
|
SCSI termination disabled |
SW1/2 |
Off | |
| » |
Factory configured - do not alter |
SW1/3 |
Off |
| » |
Block mode disabled |
SW1/4 |
Off |
|
Block mode enabled |
SW1/4 |
On | |
| » |
Eject mode disabled |
SW1/5 |
Off |
|
Eject mode enabled |
SW1/5 |
On | |
|
Note:Block mode enables the CD_ROM to be a boot drive in a UNIX environment. When Eject mode is enabled, a disc can not be ejected with the eject button. Software must be used in order to eject the disc. | |||
|
DRIVE SELECT ID | ||
|
Drive ID |
SW2 position | |
|
0 |
0 | |
|
1 |
1 | |
|
2 |
2 | |
| » |
3 |
3 |
|
4 |
4 | |
|
5 |
5 | |
|
6 |
6 | |
|
7 |
7 | |
