Device Type	CD-ROM
Interface	SCSI-2
Spin Rate	2x
Read Formats Supported	Audio combined, CD Bridge, CD-Audio, CD-G, CD-I, CD-I Ready, CD-ROM (mode 1 & 2)CD-R (Orange Book part 2), CD-XA, Photo-CD, Video CD
Write Formats Supported	Audio combined, CD-Audio, CD-Bridge, CD-I, CD-Ready, CD-ROM (mode 1 & 2), CD-XA

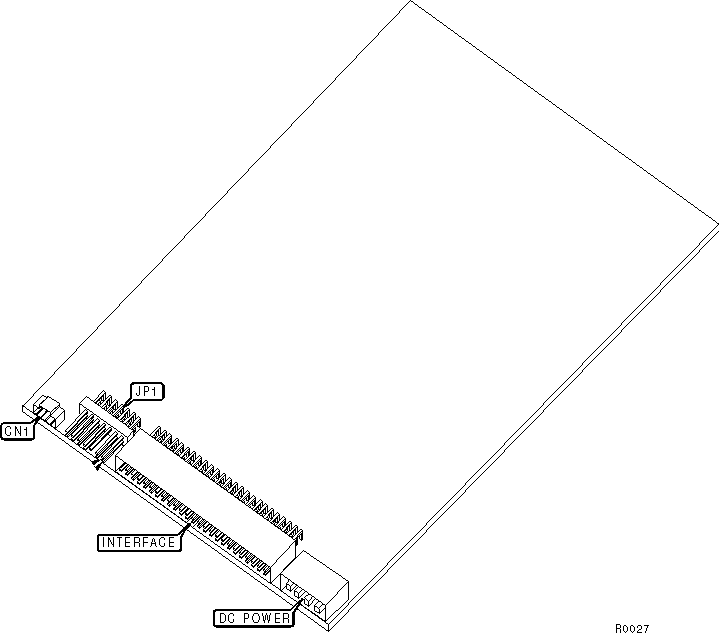

View	Bottom

CONNECTIONS
Function	Label
Audio line out	CN1

USER CONFIGURABLE SETTINGS
Setting		Label	Position
	Enables test mode	JP1/1	Closed
	Enables normal operation	JP1/1	Open
»	Allow insertion & removal of CD’s by command or eject button	JP1/2	Closed
	Prevent insertion & removal of CD’s	JP1/2	Open
»	Parity enabled	JP1/7	Closed
	Parity disabled	JP1/7	Open

DRIVE SELECT ID
Drive ID		JP1/4	JP1/5	JP1/6
	0	Open	Open	Open
	1	Open	Open	Closed
	2	Open	Closed	Open
	3	Open	Closed	Closed
	4	Closed	Open	Open
	5	Closed	Open	Closed
»	6	Closed	Closed	Open
	7	Closed	Closed	Closed
