CDU-311

SONY CORPORATION

CDU-311

Device Type

CD-ROM

Interface

ATAPI

Spin Rate

8x

Formats Supported

CD-Bridge, CD-Extra, CD-DA, CD-I, CD-I Ready, CD-ROM, CD-XA, Photo CD

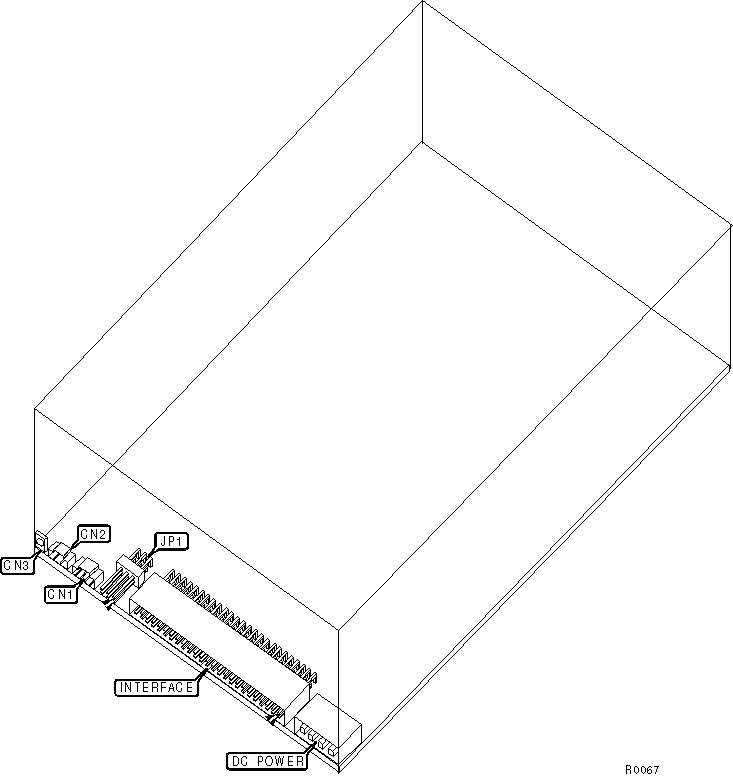

View

Top

CONNECTIONS

Function

Label

Function

Label

Audio line out

CN1

Frame ground terminal

CN3

2-pin connector

CN2

ATAPI MASTER/SLAVE

Setting

JP1/1

JP1/2

JP1/3

Single drive only

Closed

Open

Open

»
Master in two drive system

Closed

Open

Open

Slave in two drive system

Open

Closed

Open

Master/Slave determined by Cable Select

Open

Open

Closed

Note: ‘Single drive’ refers tot the sole drive connected to an IDE interface (there may be up to two on a given system). Master & Slave refer to two drives connected to an interface.

Device Type	CD-ROM
Interface	ATAPI
Spin Rate	8x
Formats Supported	CD-Bridge, CD-Extra, CD-DA, CD-I, CD-I Ready, CD-ROM, CD-XA, Photo CD
View	Top

CONNECTIONS
Function	Label	Function	Label
Audio line out	CN1	Frame ground terminal	CN3
2-pin connector	CN2

ATAPI MASTER/SLAVE
Setting		JP1/1	JP1/2	JP1/3
	Single drive only	Closed	Open	Open
»	Master in two drive system	Closed	Open	Open
	Slave in two drive system	Open	Closed	Open
	Master/Slave determined by Cable Select	Open	Open	Closed
Note: ‘Single drive’ refers tot the sole drive connected to an IDE interface (there may be up to two on a given system). Master & Slave refer to two drives connected to an interface.
