TOSHIBA
XM-5401B
|
Device Type |
CD-ROM |
|
Interface |
SCSI |
|
Spin Rate |
4x |
|
Formats Supported |
CD-XA, CD-I, Photo-CD, Video CD, Red & Yellow Book, CD-G, Multi-session |
|

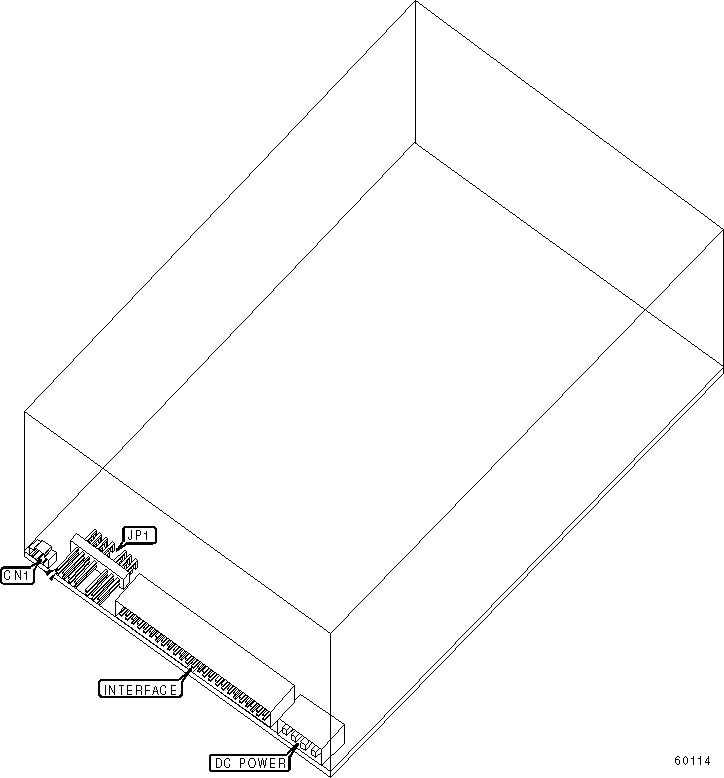

View |
Top |
|
CONNECTIONS | |
|
Function |
Label |
|
Audio line out |
CN1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Parity check disabled |
JP1/4 |
Open |
|
Parity check enabled |
JP1/4 |
Closed | |
| » |
Allow insertion and removal of CD’s by command or eject button |
JP1/5 |
Open |
|
Prevent insertion and removal of CD’s |
JP1/5 |
Closed | |
| » |
Normal operation mode |
JP1/6 |
Open |
|
CD-Audio playback mode (ID must be set at 0) |
JP1/6 |
Closed | |
| » |
Termination enabled |
JP1/7 |
Open |
|
Termination disabled |
JP1/7 |
Closed | |
|
DRIVE SELECT ID | |||
|
Drive ID |
JP1/1 |
JP1/2 |
JP1/3 |
|
0 |
Open |
Open |
Open |
|
1 |
Closed |
Open |
Open |
|
2 |
Open |
Closed |
Open |
|
3 |
Closed |
Closed |
Open |
|
4 |
Open |
Open |
Closed |
|
5 |
Closed |
Open |
Closed |
|
6 |
Open |
Closed |
Closed |
|
7 |
Closed |
Closed |
Closed |
