Device Type	CD-ROM
Interface	ATAPI
Spin Rate	6x
Formats Supported	CD-DA, CD-I, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD, Audio CD

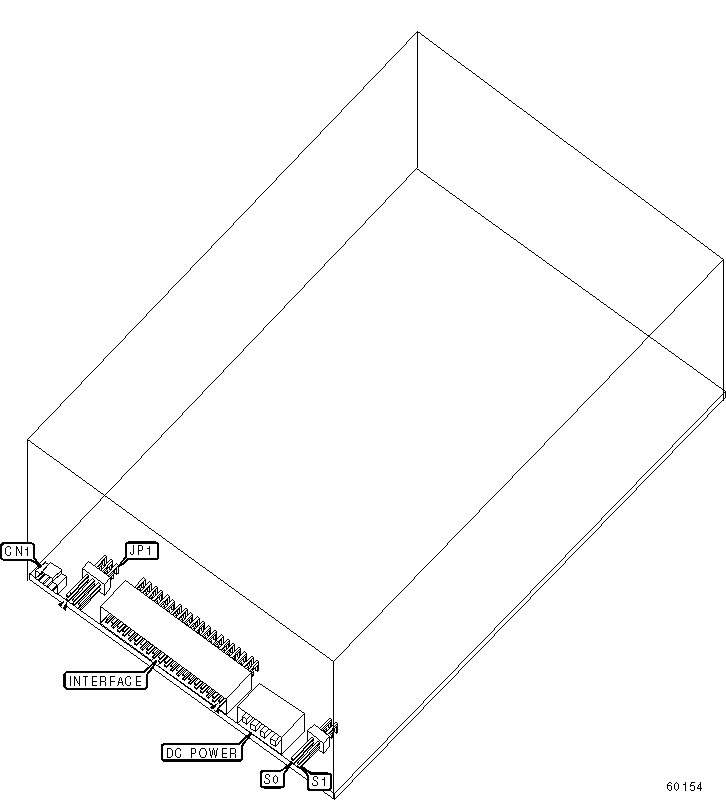

View	Top

CONNECTIONS
Function	Label
Audio line out	CN1

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Factory configured - do not alter	S0	Open
	Allow insertion and removal of CD’s by command or eject button	S1	Closed
	Prevent insertion and removal of CD’s	S1	Open

ATAPI MASTER/SLAVE
Setting		JP1/1	JP1/2	JP1/3
	Single drive only	Open	Open	Closed
»	Master in two drive system	Open	Open	Closed
	Slave in two drive system	Open	Closed	Open
	Cable Select	Closed	Open	Open
