Device Type

CD-ROM

Interface

SCSI-2

Spin Rate (Read/Write)

Unidentified

Formats Supported Read

Photo CD

Formats Supported Write

N/A

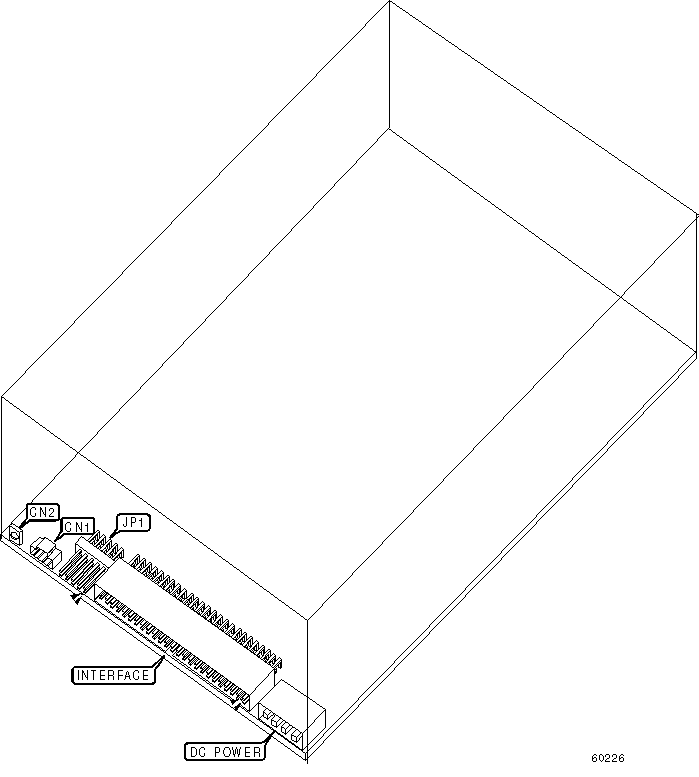

View

Top

CONNECTIONS

Function

Label

Function

Label

Audio out

CN1

Grounding connector

CN2

DRIVE SELECT ID

Drive ID

JP1/jumper 1

JP1/jumper 2

JP1/jumper 3

0

Open

Open

Open

»

1

Open

Open

Closed

2

Open

Closed

Open

3

Open

Closed

Closed

4

Closed

Open

Open

5

Closed

Open

Closed

6

Closed

Closed

Open

7

Closed

Closed

Closed

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Factory configured - do not alter

JP1/jumper 4

Open

»

Factory configured - do not alter

JP1/jumper 5

Open
