CDU928E

SONY CORPORATION

CDU928E

Device Type

CD-ROM

Interface

ATAPI

Spin Rate (Read/Write)

1x/2x/8x (read)

1x/2x (write)

Formats Supported Read

CD-XA, CD-DA, CD-I, CD-I Ready, CD-Bridge, CD-ROM (Mode 1 & Mode 2), Red & Yellow Book, CD-Extra, CD-R (conforming to Orange Book Part-2)

Formats Supported Write

CD-XA, CD-DA, CD-I, CD-Bridge, CD-ROM (Mode 1 & Mode 2), Red & Yellow Book

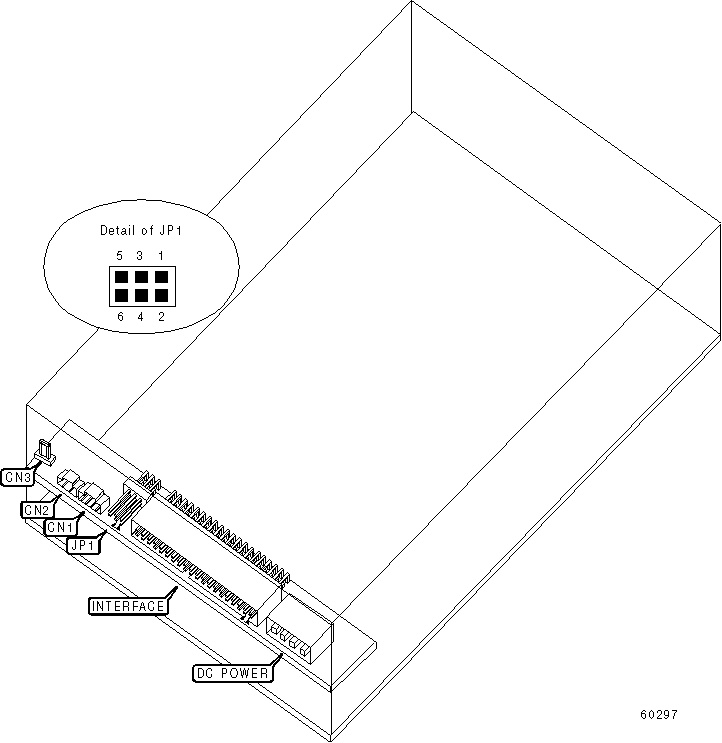

View

Top

CONNECTIONS

Function

Label

Function

Label

Audio out connector

CN1

Ground connector

CN3

Digital audio out connector (not used)

CN2

ATAPI MASTER/SLAVE

Setting

JP1

Drive is master

Pins 1 & 2 closed

Drive is slave

Pins 3 & 4 closed

Master/slave determined by cable select

Pins 5 & 6 closed

Device Type	CD-ROM
Interface	ATAPI
Spin Rate (Read/Write)	1x/2x/8x (read) 1x/2x (write)
Formats Supported Read	CD-XA, CD-DA, CD-I, CD-I Ready, CD-Bridge, CD-ROM (Mode 1 & Mode 2), Red & Yellow Book, CD-Extra, CD-R (conforming to Orange Book Part-2)
Formats Supported Write	CD-XA, CD-DA, CD-I, CD-Bridge, CD-ROM (Mode 1 & Mode 2), Red & Yellow Book
View	Top

CONNECTIONS
Function	Label	Function	Label
Audio out connector	CN1	Ground connector	CN3
Digital audio out connector (not used)	CN2

ATAPI MASTER/SLAVE
Setting	JP1
Drive is master	Pins 1 & 2 closed
Drive is slave	Pins 3 & 4 closed
Master/slave determined by cable select	Pins 5 & 6 closed
