Device Type	CD-ROM
Interface	ATAPI
Spin Rate	16x
Formats Supported Read	CD-XA, CD-DA, CD-I, CDI-Ready, CD-I Bridge, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD, Red & Yellow Book, CD-G, CD-Extra

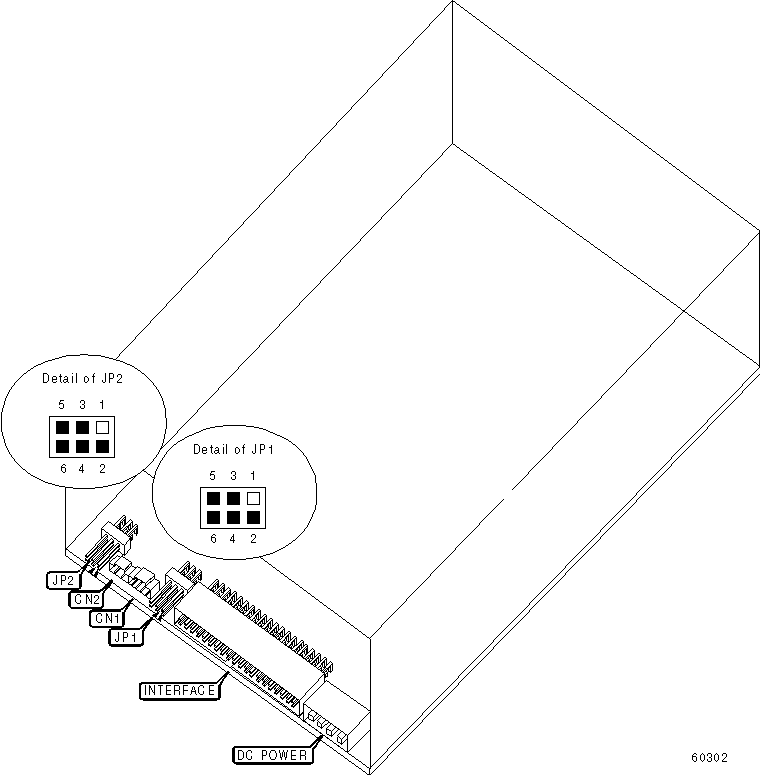

View	Top

CONNECTIONS
Function	Label	Function	Label
Analog audio out connector	CN1	Digital audio out connector	CN2

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Prevent the insertion and removal of CDs	JP2/Pins 1 & 2	Closed
	Allow the insertion and removal of CDs	JP2/Pins 1 & 2	Open
»	Factory configured - do not alter (Factory Test Modes)	JP2/Pins 3 - 6	Unidentified

ATAPI MASTER/SLAVE
Setting		JP1
	Master in two drive system	Pins 1 & 2 closed
»	Slave in two drive system	Pins 3 & 4 closed
	Master/Slave determined by cable select	Pins 5 & 6 closed
