Device Type

Internal CD-ROM

Interface

ATAPI

Spin Rate (Read)

24x

Formats Supported Read

CD-XA, CD-DA, CD-R, CD-RW, CD-I, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD, CD-Plus

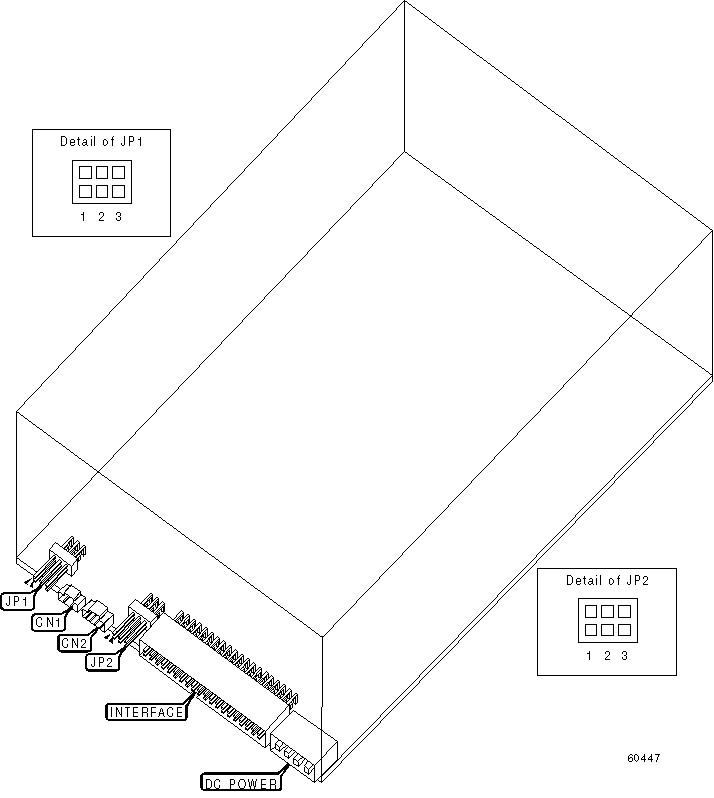

View

Top

CONNECTIONS

Function

Label

Function

Label

Digital audio line out

CN1

Analog audio line out

CN2

USER CONFIGURABLE SETTINGS

Setting

Label

Position

» Factory configured - do not alter

JP1/1

Open

» Factory configured - do not alter

JP1/2

Open

» CD tray lock disabled

JP1/3

Closed

CD tray lock enabled

JP1/3

Open

ATAPI MASTER/SLAVE

Setting

JP2/1

JP2/2

JP2/3

Single drive only/Master in two drive system

Open

Open

Closed

Slave in two drive system

Open

Closed

Open

Master/slave determined by cable select

Closed

Open

Open
