Device Type	Internal DVD-ROM
Interface	ATAPI
Spin Rate (Read/Write)	8x
Formats Supported Read	CD-XA, CD-DA, CD-R, CD-I, CD-ROM (Mode 1), Photo-CD, Video CD, CD-Plus, Video DVD, DVD-ROM

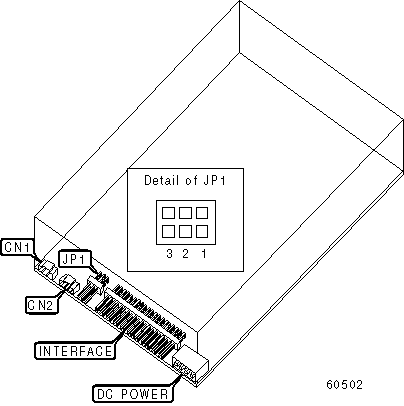

View	Top

CONNECTIONS
Function	Label	Function	Label
Digital audio line out	CN1	Audio line out	CN2

ATAPI MASTER/SLAVE
Setting	JP1/1	JP1/2	JP1/3
Master in two drive system	Closed	Open	Open
Slave in two drive system	Open	Closed	Open
Master/slave determined by cable select	Open	Open	Closed
