Device Type	Internal CD-ROM
Interface	ATAPI
Spin Rate (Read)	24x
Formats Supported Read	CD-XA, CD-DA, CD-I, Photo-CD, Video CD, CD-Plus

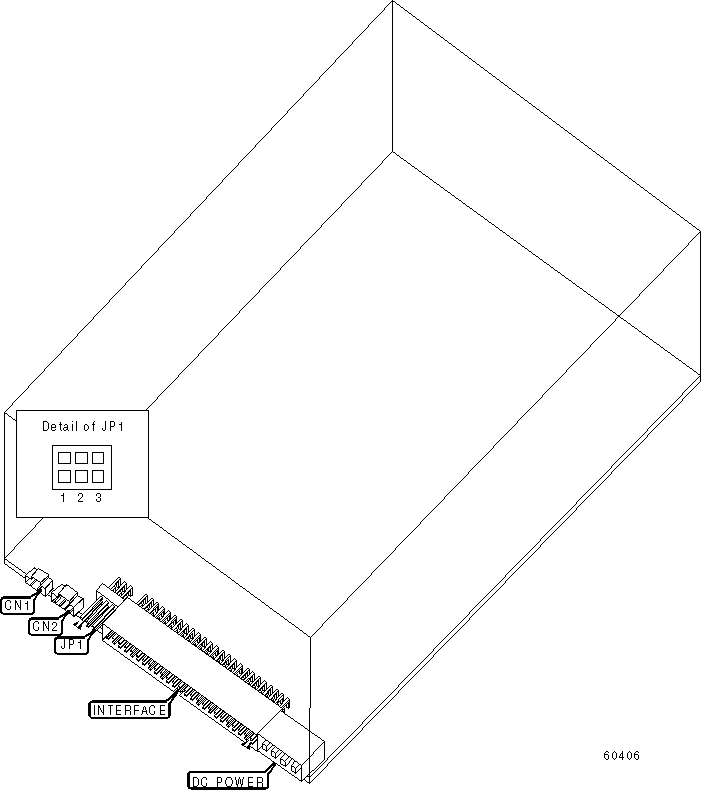

View	Top

CONNECTIONS
Function	Label		Function		Label
Digital audio line out		CN1		Analog audio line out		CN2

ATAPI MASTER/SLAVE
Setting	JP1/1	JP1/2	JP1/3
í Single drive/Master in two drive system	Open	Open	Closed
Slave in two drive system	Open	Closed	Open
Master/Slave determined by cable select	Closed	Open	Open
