ATI TECHNOLOGIES, INC.
14400 ETC-I/19200 ETC-I
|
Modem Type |
Data (synchronous/asynchronous) |
|
Maximum Data Rate |
19.2Kbps |
|
Maximum Fax Rate |
19.2Kbps |
|
Data Bus |
8-bit ISA |
|
Fax Class |
Class 1 |
|
Data Modulation Protocol |
Bell 103 & 212A ITU-T V.21, V.22, V.22bis, V.32, V.32ter |
|
Fax Modulation Protocol |
GRP III |
|
Error Correction/Compression |
MNP 2 - 5, ITU-T V.42, V.42bis |
|

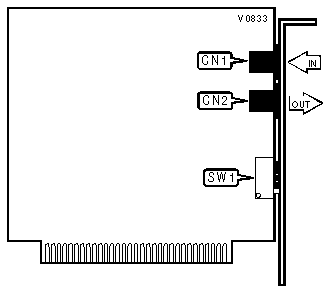

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Line-out |
CN2 |
Line-out |
CN2 |
|
MODEM ENABLE/DISABLE | |
|
í Setting |
SW1/1 |
| » Enabled |
On |
|
í Disabled |
Off |
|
ADDRESS SELECT | ||
|
í COM/Address |
SW1/2 |
SW1/3 |
|
í COM1/3F8h |
Off |
Off |
| » COM2/2F8h |
Off |
On |
|
í COM3/3E8h |
On |
Off |
|
í COM4/2E8h |
On |
On |
|
INTERRUPT SELECT | ||
|
í í IRQ |
SW1/4 |
SW1/5 |
|
í IRQ2 |
Off |
Off |
|
í IRQ3 |
Off |
On |
| » IRQ4 |
On |
Off |
|
í IRQ5 |
On |
On |
|
S89 - PROPRIETARY BIT-MAPPED REGISTER | |||
|
Value Range: |
Bit-mapped | ||
|
Default: |
254 (19200 ETC-I) 62 (14400 ETC-I) | ||
|
Type: |
Read/Write | ||
|
In Stored Profile?: |
Yes | ||
|
Description: |
Bit-mapped configuration register. | ||
|
Bit |
Value |
Function | |
|
0 | » 0 |
Not used | |
|
1 |
» 1
í 0 |
4800bps data rate enabled. 4800bps data rate disabled. | |
|
2 |
» 1
í 0 |
7200bps data rate enabled. 7200bps data rate disabled. | |
|
3 |
» 1
í 0 |
9600bps data rate enabled. 9600bps data rate disabled. | |
|
4 |
» 1
í 0 |
12.0Kbps data rate enabled. 12.0Kbps data rate disabled. | |
|
5 |
» 1
í 0 |
14.4Kbps data rate enabled. 14.4Kbps data rate disabled. | |
|
6 |
» 1
í 0 |
16.8Kbps data rate enabled. 16.8Kbps data rate disabled. | |
|
7 |
» 1
í 0 |
19.2Kbps data rate enabled. 19.2Kbps data rate disabled. | |
|
Note: Bits 6 & 7 apply to the 19200 ETC-I only. | |||
