BOCA RESEARCH, INC.
ON-LINE EXPRESS V.34 (MV.34AI)
|
Modem Type |
Data (asynchronous)/Fax/Voice |
|
Maximum Data Rate |
28.8Kbps |
|
Maximum Fax Rate |
14.4Kbps |
|
Data Bus |
8 bit ISA |
|
Fax Class |
Class I |
|
Data Modulation Protocol |
AT&T V.32terbo Bell 103A/212A ITU-T V.21, V.22bis, V.23, V.32, V.32bis, V.34 |
|
Fax Modulation Protocol |
ITU-T V.17, V.21CH2, V.27ter, V.29 |
|
Error Correction/Compression |
MNP5, V.42, V.42bis |
|

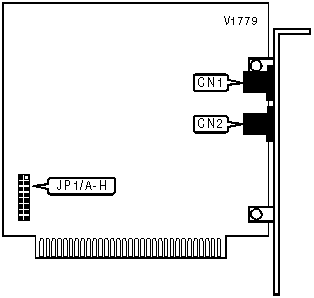

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Line in |
CN1 |
Line out |
CN2 |
| SERIAL PORT ADDRESS | ||||
|
Setting |
JP1/E |
JP1/F |
JP1/G |
JP1/H |
|
COM1 (3F8h) |
Closed |
Open |
Open |
Open |
|
í COM2 (2F8h) |
Open |
Closed |
Open |
Open |
|
COM3 (3E8h) |
Open |
Open |
Closed |
Open |
|
COM4 (2E8h) |
Open |
Open |
Open |
Closed |
|
INTERRUPT | ||||
|
Setting |
JP1/A |
JP1/B |
JP1/C |
JP1/D |
| » 3 |
Closed |
Open |
Open |
Open |
|
4 |
Open |
Closed |
Open |
Open |
|
5 |
Open |
Open |
Closed |
Open |
|
7 |
Open |
Open |
Open |
Closed |
Proprietary AT Command Set
See document V1772 for a full command summary
