BOCA OFFICE COMMUNICATOR V.34 (FDV34SVD)

BOCA RESEARCH, INC.

Card Type

Modem/digital simultaneous voice and data

Chip Set

Unidentified

Maximum Data Rate

28.8Kbps

Maximum Fax Rate

14.4Kbps

Data Bus

8 bit ISA

Fax Class

Class I & II

Data Modulation Protocol

Bell 103A/212A

ITU-T V.21, V.22, V.22bis, V.32, V.32bis, V.34

Rockwell V.FC

Fax Modulation Protocol

ITU-T V.17, V.21CH2, V.27ter, V.29

Error Correction/Compression

MNP5, V.42, V.42bis

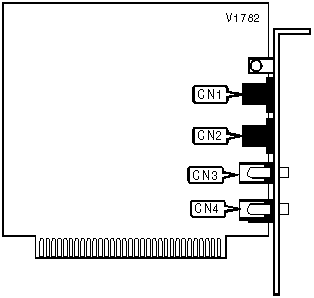

CONNECTIONS

Function

Label

Function

Label

Line in

CN1

Microphone

CN3

Line out

CN2

Speaker

CN4

Proprietary AT Command Set

See document V1775 for a full command summary.

Card Type	Modem/digital simultaneous voice and data
Chip Set	Unidentified
Maximum Data Rate	28.8Kbps
Maximum Fax Rate	14.4Kbps
Data Bus	8 bit ISA
Fax Class	Class I & II
Data Modulation Protocol	Bell 103A/212A ITU-T V.21, V.22, V.22bis, V.32, V.32bis, V.34 Rockwell V.FC
Fax Modulation Protocol	ITU-T V.17, V.21CH2, V.27ter, V.29
Error Correction/Compression	MNP5, V.42, V.42bis

CONNECTIONS
Function	Label		Function		Label
Line in		CN1		Microphone		CN3
Line out		CN2		Speaker		CN4
