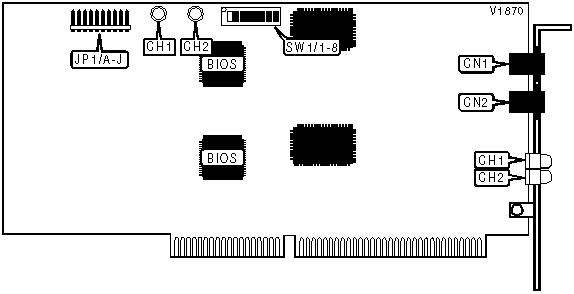

BROOKTROUT TECHNOLOGY, INC.
TRUFAX 200
|
Card Type |
Fax |
|
Chip Set |
Rockwell |
|
Maximum Fax Rate |
14.4Kbps |
|
Data Bus |
8-bit ISA |
|
Fax Class |
Class I & II |
|
Fax Modulation Protocol |
ITU-T V.17, V.21CH2, V.29, V.33 |
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Fax channel 1 |
CN1 |
Fax channel 2 |
CN2 |
|
SERIAL PORT ADDRESS | ||||||||
|
Setting |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 | |
|
100h |
Off |
On |
Off |
Off |
Off |
Off |
Off | |
|
108h |
Off |
On |
Off |
Off |
Off |
Off |
On | |
|
110h |
Off |
On |
Off |
Off |
Off |
On |
Off | |
|
118h |
Off |
On |
Off |
Off |
Off |
On |
On | |
|
120h |
Off |
On |
Off |
Off |
On |
Off |
Off | |
|
128h |
Off |
On |
Off |
Off |
On |
Off |
On | |
|
130h |
Off |
On |
Off |
Off |
On |
On |
Off | |
|
138h |
Off |
On |
Off |
Off |
On |
On |
On | |
| » |
140h |
Off |
On |
Off |
On |
Off |
Off |
Off |
|
148h |
Off |
On |
Off |
On |
Off |
Off |
On | |
|
150h |
Off |
On |
Off |
On |
Off |
On |
Off | |
|
158h |
Off |
On |
Off |
On |
Off |
On |
On | |
|
160h |
Off |
On |
Off |
On |
On |
Off |
Off | |
|
168h |
Off |
On |
Off |
On |
On |
Off |
On | |
|
170h |
Off |
On |
Off |
On |
On |
On |
Off | |
|
178h |
Off |
On |
Off |
On |
On |
On |
On | |
|
180h |
Off |
On |
On |
Off |
Off |
Off |
Off | |
|
188h |
Off |
On |
On |
Off |
Off |
Off |
On | |
|
190h |
Off |
On |
On |
Off |
Off |
On |
Off | |
|
2E8h (COM4:) |
On |
Off |
On |
On |
On |
Off |
On | |
|
2F8h (COM2:) |
On |
Off |
On |
On |
On |
On |
On | |
|
3E8h (COM3:) |
On |
On |
On |
On |
On |
Off |
On | |
|
3F8h (COM1:) |
On |
On |
On |
On |
On |
On |
On | |
|
Note: A total of 95 memory base address settings are available. The switches are a binary representation of the hexadecimal addresses. Switch 7 is the Least Significant Bit and switch 1 is the Most Significant Bit. The switches have the following hexadecimal values: switch 1=200h, 2=100h, 3=80h, 4=40h, 5=20h, 6=10h, 7=8h. Add the On switches to obtain the correct memory base address. (On=1, Off=0) Set Switch 8 to Off.The TruFax 200 uses four consecutive addresses. | ||||||||
|
INTERRUPT | |||||||||||
|
Setting |
JP1/A |
JP1/B |
JP1/C |
JP1/D |
JP1/E |
JP1/F |
JP1/G |
JP1/H |
JP1/I |
JP1/J | |
|
3 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
|
4 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
| » |
5 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
7 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open | |
|
9 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
10 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
11 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
12 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
14 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
15 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
CH1 |
Red |
Off |
Fax Channel 1 is on-hook |
|
CH1 |
Red |
On |
Fax Channel 1 is off-hook |
|
CH1 |
Red |
Fast blink |
Dialing or sending/receiving a Fax on Channel 1 |
|
CH1 |
Red |
Slow blink |
Channel 1 phone is ringing |
|
CH2 |
Red |
Off |
Fax Channel 2 is on-hook |
|
CH2 |
Red |
On |
Fax Channel 2 is off-hook |
|
CH2 |
Red |
Fast blink |
Dialing or sending/receiving a Fax on Channel 2 |
|
CH2 |
Red |
Slow blink |
Channel 2 phone is ringing |
