Card Type	Telephony/ Sound card
Chip Set	Unidentified
Maximum Onboard Memory	Unidentified
I/O Options	Game/MIDI port, wavetable connector, line in, line out (2), microphone in (2), telephone line in, audio in - CD-ROM (2), radio in, TV video card connector
Maximum Modem Rate	33.6Kbps
Maximum Fax Rate	Unidentified
Data Modulation Protocol	Bell 103A/212A ITU-T V.21, V.22 A/B, V.22bis, V.23, V.32, V.32bis, V.34, V.34bis
Fax Modulation Protocol	ITU-T V.17, V.21CH2, V.27ter, V.29
Error Correction/Compression	MNP10,MNP5, V.42, V.42bis, MNP10EC
Fax Class	Class I & II
Data Bus	16-bit ISA

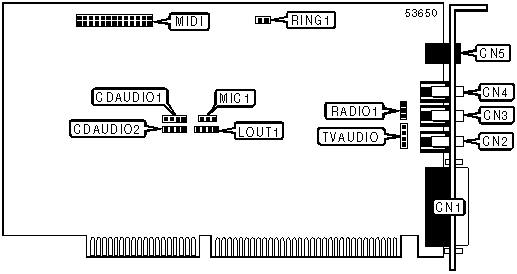

CONNECTIONS
Function	Location	Function	Location
Game/MIDI port	CN1	Line out - internal	LOUT1
Line out - external	CN2	Microphone in - internal	MIC1
Microphone in - external	CN3	Wavetable	MIDI
Line in	CN4	FM Radio in connector	RADIO1
Telephone jack	CN5	Power management connector	RING1
Audio in - CD-ROM	CDAUDIO1	TV video card connector	TVAUDIO
Audio in - CD-ROM	CDAUDIO2

MISCELLANEOUS TECHNICAL NOTES

Modem command set is unidentified.
