Card Type	ISDN TA
Chipset	Unidentiified
ISDN Transfer Rate	64Kbps x 2
ISDN Protocol	PPP
Switch Type	5ESS, DMS100, NI-1
Data Bus	Parallel

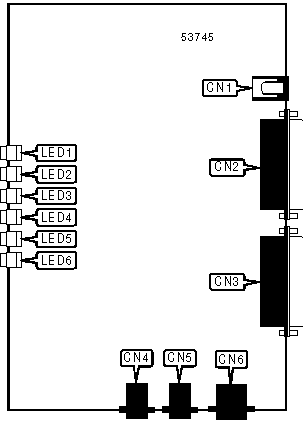

CONNECTIONS
Function	Label	Function	Label
DC power in	CN1	Analog adapter 2	CN4
Parallel port out to printer	CN2	Analog adapter 1	CN5
Parallel port in from computer	CN3	ISDN U interface	CN6

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Unidentified	On	Power is on
LED1	Unidentified	Off	Power is off
LED2	Unidentified	On	Analog adapter 2 is in use
LED2	Unidentified	Off	Analog adapter 2 is not in use
LED3	Unidentified	On	Analog adapter 1 is in use
LED3	Unidentified	Off	Analog adapter 1 is not in use
LED4	Unidentified	Blinking	ISDN line is in use
LED4	Unidentified	Off	ISDN line is not in use
LED5	Unidentified	On	Computer attached to parallel port is powered on
LED5	Unidentified	Off	Computer attached to parallel port is powered off
LED6	Unidentified	Blinking	TA is transmitting or receiving data
LED6	Unidentified	Off	TA is not transmitting or receiving data
