APACHE MICRO PERIPHERALS, INC.
APACHE A56-R
|
Card Type |
Modem (asynchronous) |
|
Chip Set |
Unidentified |
|
I/O Options |
Speaker out, microphone |
|
Maximum Modem Rate |
56Kbps |
|
Maximum Fax Rate |
14.4Kbps |
|
Data Modulation Protocol |
Bell 103/212A ITU-T V.21, V.22bis, V.23, V.32, V.32bis, V.34, V.34+, V.FC, K56flex, V.90 |
|
Fax Modulation Protocol |
ITU-T V.17, V.21 CH2, V.27ter, V.29 |
|
Error Correction/Compression |
MNP5, V.42, V.42bis |
|
Fax Class |
Class I |
|
Data Bus |
16-bit ISA |
|
Card Size |
Half-length, full-height card |
|

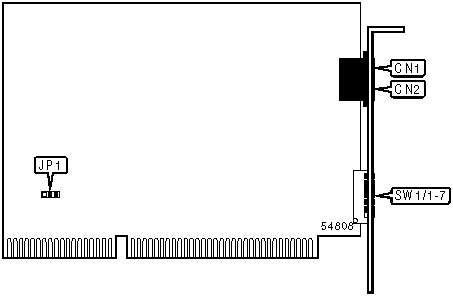

CONNECTIONS | ||||||
|
Function |
Label |
Function |
Label | |||
|
Line out |
CN1 |
Line in |
CN2 | |||
|
SERIAL PORT ADDRESS | ||
|
Setting |
SW1/5 |
SW1/6 |
|
COM1 (3F8h) |
On |
On |
|
COM2 (2F8h) |
Off |
On |
|
COM3 (3E8h) |
On |
Off |
|
COM4 (2E8h) |
Off |
Off |
|
INTERRUPT | ||||||
|
Setting |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/7 |
JP1 |
|
IRQ 2 |
Off |
Off |
Off |
Off |
On |
Open |
|
IRQ 3 |
Off |
Off |
Off |
On |
Off |
Open |
|
IRQ 4 |
Off |
Off |
On |
Off |
Off |
Open |
|
IRQ 5 |
Off |
On |
Off |
Off |
Off |
Open |
|
IRQ 7 |
On |
Off |
Off |
Off |
Off |
Open |
|
IRQ 10 |
Off |
Off |
Off |
Off |
Off |
2 & 3 |
|
IRQ 11 |
Off |
Off |
Off |
Off |
Off |
1 & 2 |
|
Note: Pins designated are in the closed position | ||||||
|
SUPPORTED COMMAND SET |
|
Basic AT Commands |
|
AT, A/ |
|
A, B, D, E, H, M, O, P, Q, T, V, W, X, Y, Z |
|
&C, &D, &M, &P, &Q, &R, &T, &W, &X, &Y, &Z |
|
Extended AT Commands |
|
\A, \B, \K, \N |
|
%C, %E, %L, %Q |
|
S Registers |
|
S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, S14, S16, S18, S21, S22, S23, S24, S25, S26, |
|
S27, S28, S29, S30, S31, S32, S33, S36, S37, S38, S39, S40, S41, S46, S48, S82, S86, S91, S92, |
|
S95 |
|
Special Commands |
|
-K, +MS |
|
Note: See MHI Help File for full command documentation. |
Proprietary AT Command Set
|
TRANSMIT CARRIER | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] Cn [cmds] |
|
Description: |
Controls the transmit carrier switching |
Note: Disabling the transmit carrier puts the modem in receive-only mode | |
|
Command |
Function |
|
í C1 |
Return OK message |
|
LINE MODULATION | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] Fn [cmds] |
|
Description: |
Selects the line modulation |
Note: This command is only supported on older modems | |
|
Command |
Function |
|
F0 |
Auto-detect mode |
|
í F1 |
V.21 or Bell 103 |
|
F3 |
V.23 |
|
F4 |
V.22 or Bell 212A @ 1200bps |
|
F5 |
V.22bis |
|
F6 |
V.32bis or V.32 @ 4800bps |
|
F7 |
V.32bis @ 7200bps |
|
F8 |
V.32bis or V.32 @ 9600bps |
|
F9 |
V.32bis @ 12000bps |
|
F10 |
V.32bis @ 14400bps |
|
REPORT INFORMATION | |
|
Type: |
Immediate |
|
Format: |
AT [cmds] In [cmds] |
|
Description: |
Displays information requested |
|
Command |
Function |
|
I0 |
Reports product code |
|
I1 |
Reports ROM checksum |
|
I2 |
Reports OK |
|
I3 |
Report firmware revision, model interface type |
|
I4 |
Reports response programmed by an OEM |
|
I5 |
Reports country code |
|
I6 |
Reports modem data pump model and code revision |
|
I7 |
Reports DAA code (W-class only) |
|
SPEAKER VOLUME | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] Ln [cmds] |
|
Description: |
Controls speaker volume |
|
Command |
Function |
|
L0 |
Low volume setting |
|
L1 |
Low volume setting |
|
í L2 |
Medium volume setting |
|
L3 |
Highest volume setting |
|
AUTO-MODE DETECTION | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] Nn [cmds] |
|
Description: |
Selects various options for the automatic detection and negotiation of protocols during the handshake process if the modem is communicating with a remote modem of dissimilar speed. |
|
Command |
Function |
|
N0 |
Auto-mode detection disabled |
|
N1 |
Auto-mode detection enabled |
|
FACTORY DEFAULT PROFILE | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &F [cmds] |
|
Description: |
Sets values in active profile to values found in the default profile |
|
Command |
Function |
|
í &F0 |
Restore factory profile 0 |
|
&F1 |
Restore factory profile 1 |
|
GUARD TONE | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &Gn [cmds] |
|
Description: |
Commands the modem to transmit a guard tone in V.22/V.22bis |
Note: Used primarily for international data transmission | |
|
Command |
Function |
|
í &G0 |
Guard tone disabled |
|
&G1 |
Guard tone disabled |
|
&G2 |
1800Hz guard tone enabled |
|
S-REGISTER RESPONSE | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &Jn [cmds] |
|
Description: |
This command included for compatibility. It performs no function. |
|
FLOW CONTROL | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &Kn [cmds] |
|
Description: |
Enables flow control options |
|
Command |
Function |
|
&K0 |
Flow control disabled |
|
&K3 |
RTS/CTS flow control enabled |
|
&K4 |
XON/XOFF flow control enabled |
|
&K5 |
Transparent XON/XOFF flow control enabled |
|
&K6 |
RTS/CTS and XON/XOFF flow control enabled |
|
LINE TYPE | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &Ln [cmds] |
|
Description: |
Selects line type |
|
Command |
Line Type |
|
í &L0 |
Switched line (PSTN/Dial-up) |
|
DATA SET READY (DSR) | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &Sn [cmds] |
|
Description: |
Selects DSR options |
|
Command |
Function |
|
&S0 |
DSR forced high |
|
&S1 |
DSR high while modem is handshaking or connected |
|
CONFIGURATION PROFILES | |
|
Type: |
Immediate |
|
Format: |
AT [cmds] &V [cmds] |
|
Description: |
Displays active and stored configuration profiles |
|
Command |
Function |
|
&V1 |
Display connection statistics |
Extended AT Commands
|
EXTENDED RESULT CODES | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] \Vn [cmds] |
|
Description: |
Selects extended result codes |
|
Command |
Function |
|
\V0 |
Connect messages are controlled by settings X, W, and S95 |
|
\V1 |
Connect messages are displayed in the single line format |
|
PLUG AND PLAY SERIAL NUMBER | |
|
Type: |
Immediate |
|
Format: |
AT [cmds] %7 [cmds] |
|
Description: |
Returns the plug & play serial number |
|
PLUG AND PLAY VENDOR ID | |
|
Type: |
Immediate |
|
Format: |
AT [cmds] %8 [cmds] |
|
Description: |
Returns the plug & play vendor ID and product number |
|
RPI MODE SELECTION | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] +Hn [cmds] |
|
Description: |
Sets the RPI mode |
|
Command |
Function |
|
+H0 |
RPI/video ready mode disabled |
|
+H1 |
RPI enabled and set DTE speed to 19200bps |
|
+H2 |
RPI enabled and set DTE speed to 38400bps |
|
+H3 |
RPI enabled and set DTE speed to 57600bps |
|
+H11 |
RPI+ mode enabled |
|
+H16 |
Video ready mode enabled |
|
DISTINCTIVE RING | |
|
Type: |
Immediate |
|
Format: |
AT [cmds] -SDR=n [cmds] |
|
Description: |
Selects the distinctive ring settings |
|
Command |
Function |
|
-SDR=0 |
Distinctive ring disabled |
|
-SDR=1 |
Type 1 enabled |
|
-SDR=2 |
Type 2 enabled |
|
-SDR=3 |
Type 1 and 2 enabled |
|
-SDR=4 |
Type 3 enabled |
|
-SDR=5 |
Type 1 and 3 enabled |
|
-SDR=6 |
Type 2 and 3 enabled |
|
-SDR=7 |
Type 1, 2, and 3 enabled |
|
MNP10-EC | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] -SECn [cmds] |
|
Description: |
Controls MNP10-EC |
|
Command |
Function |
|
-SEC0 |
MNP10-EC disabled |
|
-SEC1 |
MNP10-EC enabled ans set transmit (TX) level to 0 - 30 |
S(status) -REGISTERS
|
AUTOSYNC OPTIONS | |
|
Type: |
Register |
|
Format |
AT [cmds] S19=n [cmds] |
|
Default: |
0 |
|
Range: |
Unidentified |
|
Description: |
Sets the AutoSync option |
|
AUTOSYNC HDLC ADDRESS | |
|
Type: |
Register |
|
Format |
AT [cmds] S20=n [cmds] |
|
Default: |
0 |
|
Range: |
0-255 |
|
Description: |
Sets the AutoSync HDLC address of BSC Sync charactyer |
