AVM COMPUTERSYSTEME
ISDN-CONTROLLER A1
|
Card Type |
ISDN |
|
Chip Set |
Unidentified |
|
I/O Options |
ISDN interface (RJ-45) |
|
ISDN Data Rate |
64Kbps x 2 |
|
D-Channel Protocol |
DSS1, 1TR6, VN3/4, 5ESS, NI1, DMS-100, Austel, CT1 |
|
B-Channel Protocol (Layer 2) |
X.75, HDLC, Transparent, V.120, |
|
B-Channel Protocol (Layer 3) |
Transparent, X.25, ISO 8208, X.31, T.70 |
|
Error Correction/Compression |
Unidentified |
|
Data Bus |
16-bit ISA |
|

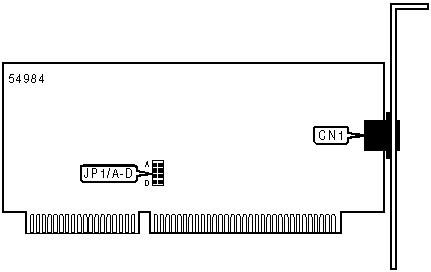

CONNECTIONS | |
|
Function |
Label |
|
ISDN interface (RJ-45 connector) |
CN1 |
|
BASE I/O ADDRESS SELECTION | ||||
|
Setting |
JP1/A |
JP1/B |
JP1/C |
JP1/D |
|
150h |
Closed |
Open |
Open |
Open |
|
250h |
Open |
Closed |
Open |
Open |
|
300h |
Open |
Open |
Closed |
Open |
|
340h |
Open |
Open |
Open |
Closed |
|
Plug & play |
Open |
Open |
Open |
Open |
