Card Type	ISDN to Ethernet Router
Chip Set	Unidentified
I/O Options	Power connector, 15-pin AUI port, 9-pin serial port, RJ-45 ISDN BRI interface (U or S/T), RJ-11 telephone port (2) RJ-45 UTP interface
Ethernet Transfer Rate	10Mbps
ISDN Rate	Unidentified
ISDN Modulation Protocol	PPP, MP, MP+
Error Correction/Compression	Unidentified
Data Bus	External

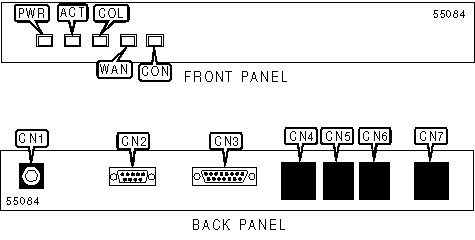

CONNECTIONS
Function	Label	Function	Label
Power	CN1	RJ-11 line 1	CN5
9-pin serial port	CN2	RJ-11 line 2	CN6
15-pin AUI port	CN3	ISDN BRI interface (RJ-45)	CN7
10 BaseT Ethernet interface (RJ-45)	CN4

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
PWR	Unidentified	On	Power is on
PWR	Unidentified	Off	Power is off
ACT	Unidentified	Blinking	Data is being transmitted/received on Ethernet interface
ACT	Unidentified	Off	Data is not being transmitted/received on Ethernet interface
COL	Unidentified	Blinking	Collisions are being detected on Ethernet interface
COL	Unidentified	Off	Collisions are not being detected on Ethernet interface
WAN	Unidentified	On	WAN session is active
WAN	Unidentified	Blinking	Error detected on BRI interface
WAN	Unidentified	Off	Connection is broken on BRI interface
CON	Unidentified	On	Unit is connected to power source; power-up test in progress
CON	Unidentified	Off	Unit is not connected to power source; power-up test not in progress
