Card Type	E1 DSU
Chip Set	Unidentified
I/O Options	AC power connector, 15-pin terminal port, 9-pin serial ports (2), 10 BaseT Eternet interface via RJ-45 connector, 25-pin data port E1 network interface via 15-pin connector
Wiring Type	10 BaseT unshielded twisted pair 120Ohm shielded twisted pair 75Ohm shielded twisted pair (optional BNC adapter)
E1 Transfer Rate	1.984Mbps
E1 Line Coding	HDB3
Frame type	G.704
Data Bus	External

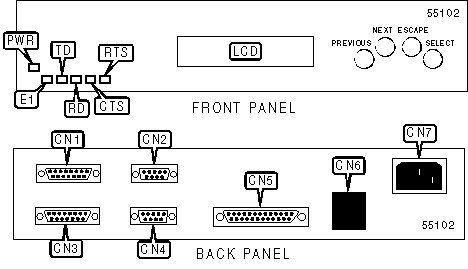

CONNECTIONS
Function	Label	Function	Label
15-pin terminal port	CN1	25-pin data port	CN5
DCE serial port	CN2	10 BaseT Ethernet interface (RJ-45)	CN6
E1 network port (15-pin connector)	CN3	AC power connector	CN7
DTE serial port	CN4

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
PWR	Green	On	Power is on
PWR	Red	On	Equipment failure occurred during self test
PWR	Green	Blinking	User is logged in
PWR	Red/Green	Blinking	Software is being loaded
PWR	Red	Blinking	Unit is conducting a test
PWR	N/A	Off	Power is off
E1	Red	On	LOS, OOF, AIS or yellow alarm condition detected
E1	Red	Off	LOS, OOF, AIS or yellow alarm condition not detected
TD	Yellow	On	Data is being transmitted from the data port (CN5)
TD	Yellow	Off	Data is not being transmitted from the data port (CN5). Indicative of all zero condition if RTS and CTS are high.
RD	Yellow	On	Data is being received at the data port (CN5)
RD	Yellow	Off	Data is not being recieved at the data port (CN5). Indicative of all zero condition if RTS and CTS are high.
CTS	Yellow	On	CTS signal is high. Unit ready to send data
CTS	Yellow	Off	CTS signal is low
RTS	Yellow	On	RTS signal is high
RTS	Yellow	Off	RTS signal is low
