Card Type	Fax
Maximum Fax Rate	14.4Kbps
Fax Modulation Protocol	ITU T.30 V.17, V.21, V.27, V.29
Error Correction/Compression	T.4 (MH and MR), T.6 (MMR)
Fax Class	Unidentified
Data Bus	32-bit PCI

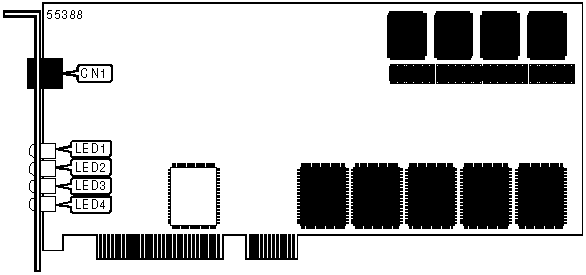

CONNECTIONS
Function	Label
RJ-45 connector	CN1

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Red	Blinking	Data is being transmitted/received on channel 0
LED1	Red	Blinking (fast)	Channel 0 is off hook
LED2	Red	Blinking	Data is being transmitted/received on channel 1
LED2	Red	Blinking (fast)	Channel 1 is off hook
LED3	Red	Blinking	Data is being transmitted/received on channel 2
LED3	Red	Blinking (fast)	Channel 2 is off hook
LED4	Red	Blinking	Data is being transmitted/received on channel 3
LED4	Red	Blinking (fast)	Channel 3 is off hook
