CARDINAL TECHNOLOGIES, INC.
MB2296SR
|
Modem Type |
Data (Asynchronous/Synchronous)/Fax |
|
Maximum Data Rate |
2400 bps |
|
Maximum Fax Rate |
9600 bps |
|
Data Bus |
8-bit ISA |
|
Fax Class |
Class I |
|
Data Modulation Protocol |
Bell 103A & 212A ITU-T V.22bis & V.22 & V.21 |
|
Fax Modulation Protocol |
ITU-T V.29 & V.27 GRP III |
|
Error Correction/Compression |
None |
|

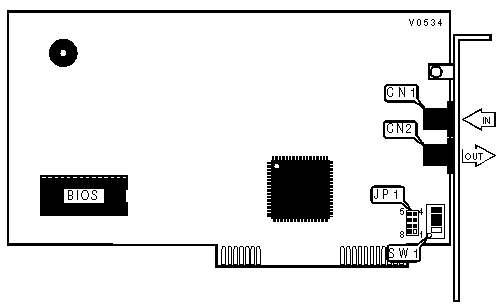

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Line in |
CN1 |
Line out |
CN2 |
|
COM PORT SETTINGS | |||||
|
COM/IRQ |
JP1 |
SW1/1 |
SW/2 |
SW1/3 |
SW1/4 |
|
í COM1 & IRQ4 |
Pins 1 & 8, 2 & 7, 3 & 6 closed |
On |
On |
On |
Off |
|
COM2 & IRQ3 |
Pins 2 & 7, 4 & 5 closed |
Off |
On |
Off |
On |
|
COM3 & IRQ4 |
Pins 1 & 8, 3 & 6 closed |
On |
Off |
On |
Off |
|
COM4 & IRQ3 |
Pins 4 & 5 closed |
Off |
Off |
Off |
On |
|
PROPRIETARY COMMAND SET | |||
|
Type: |
Configuration | ||
|
Format: |
ATS(register)=(Command Value) | ||
|
Example: |
ATS12=50 | ||
|
Description: |
Writes to or reads from a specified register. | ||
|
Register |
Command Value |
Function | |
|
S12 |
50 |
General purpose register, un-used. | |
Continued on next page . . .
CARDINAL TECHNOLOGIES, INC.
MB2296SR
.. . . continued from previous page
|
I - PROPRIETARY COMMAND | |
|
Note: |
The I Command request product code. |
|
Command |
Protocol |
|
I3 |
Request software ID. |
|
I4 |
Request configuration. |
|
PROPRIETARY RESULT CODES | ||
|
Result code |
Message |
Description |
|
9 |
CONNECT 600 |
Connect at 600bps |
