CARDINAL TECHNOLOGIES, INC.
MB14400M
|
Modem Type |
Data (Asynchronous/Synchronous)/Fax |
|
Maximum Data Rate |
14.4K bps |
|
Maximum Fax Rate |
14.4K bps |
|
Data Bus |
8-bit ISA |
|
Fax Class |
Class II |
|
Data Modulation Protocols |
Bell 103 & 212A ITU-T V32 & V32 bis & V.22 & V.22bis & V.21 |
|
Fax Modulation Protocol |
ITU-T V.29 & V.27 GRP III |
|
Error Correction/Compression |
ITU-T V.42, & V.42bis,MNP 2-5 |
|

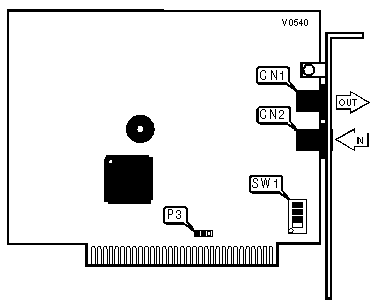

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Line out |
CN1 |
Line in |
CN2 |
|
COM PORT & IRQ SETTINGS | ||||
|
COM |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
í COM2/IRQ3 |
Off |
On |
Off |
On |
|
COM1/IRQ4 |
On |
On |
On |
Off |
|
COM3/IRQ4 |
On |
Off |
On |
Off |
|
COM4/IRQ3 |
Off |
Off |
Off |
On |
|
INTERRUPT SELECT | |
|
Setting |
P3 |
|
í IRQ Set by SW1 switches |
All open |
|
IRQ2 |
Pins 2 & 3 closed |
|
IRQ5 |
Pins 1 & 2 closed |
|
PROPRIETARY RESULT CODES | ||
|
Result code |
Message |
Description |
|
9 |
CONNECT 600 |
Connect at 600bps |
|
12 |
CONNECT 9600 |
Connect at 9600bps |
|
13 |
CONNECT 7200 |
Connect at 7200bps |
|
15 |
CONNECT 14,400 |
Connect at 14,400bps |
|
16 |
CONNECT 19,200 |
Connect at 19,200bps |
|
17 |
CONNECT 38,400 |
Connect at 38,400bps |
|
19 |
CONNECT 115,200 |
Connect at 115,200bps |
|
51 |
CARRIER 12,200 |
Carrier at 12,200bps |
|
i3 - PROPRIETARY PROTOCOLS | |
|
Type: |
CONFIGURATION |
|
Format: |
ATI3 |
|
Example: |
AT I3<CR> |
|
Description: |
Retrieves the software version data. |
|
W - PROPRIETARY PROTOCOLS | |
|
Type: | |
|
Format: |
AT [cmds] |
|
Example: |
AT <CR> |
|
Description: | |
|
W - PROPRIETARY PROTOCOLS | |
|
Note: |
INFORMATIONAL |
|
Command |
Protocol |
|
í W0 |
Protocol negotiation status not reported. |
|
W1 |
Protocol negotiation status reported. |
|
W2 |
Protocol negotiation status not reported; response is DCE |
|
&M - PROPRIETARY PROTOCOLS | |
|
Type: |
ASYNCHRONOUS MODE |
|
Format: |
AT &M0 |
|
Example: |
AT &M0<CR> |
|
Description: |
Set mode to Asynchronous, identical to &Q0. |
|
&Q - PROPRIETARY PROTOCOLS | |
|
Note: |
INFORMATIONAL |
|
Command |
Protocol |
|
í &Q1 |
Reserved. |
|
&Q2 |
Reserved. |
|
&Q3 |
Reserved. |
|
&Q4 |
Forces modem to issue OK result code; no changes to operation. |
|
&Q7 |
Reserved. |
|
&T2 - PROPRIETARY PROTOCOLS | |
|
Type: |
LOOPBACK TEST |
|
Format: |
AT &T2 |
|
Example: |
AT &T2<CR> |
|
Description: |
Reserved. |
|
\A - PROPRIETARY PROTOCOLS | |
|
Note: |
ERROR CORRECTION & DATA COMPRESSION |
|
Command |
Protocol |
|
í \A0 |
Sets MNP block size to 64 char. |
|
\A1 |
Sets MNP block size to 128 char. |
|
\A2 |
Sets MNP block size to 192 char. |
|
\A3 |
Sets MNP block size to 256 char. |
|
\Bn - PROPRIETARY PROTOCOLS | |
|
Note: |
ERROR CORRECTION & DATA COMPRESSION |
|
Command |
Protocol |
|
í \Bn |
Sends n * 100 ms break to the remote, def 300 |
|
\G - PROPRIETARY PROTOCOLS | |
|
Note: |
ERROR CORRECTION & DATA COMPRESSION |
|
Command |
Protocol |
|
í \G0 |
Disables XON/XOFF flow control. |
|
\G1 |
Enables XON/XOFF flow control. |
|
\K - PROPRIETARY PROTOCOLS | |
|
Note: |
ERROR CORRECTION & DATA COMPRESSION |
|
Command |
Protocol |
|
í \K0 |
Break from port; sets to Command mode; no break sent to remote modem. Breaks from command mode; Clears buffers, sends break. Breaks from remote; clears buffers; sends break. |
|
\K1 |
Breaks from port; clears buffers, sends break. Breaks command; clear buffers; sends break. Break from remote; clears buffers passes break on to port. |
|
\K2 |
Breaks from port; sets to command mode; no break sent. |
|
\k3 |
Breaks from port; sends break. Breaks command; sends break. breaks remote and passes break on to port. |
|
\K4 |
Breaks from port; Sets to command mode; no break sent. Breaks command; sends break with sequence of data. Breaks remote; passes break on to port. |
|
\K5 |
Breaks from port; Sends break with sequence of data. Breaks command; sends break with sequence of data. Breaks from remote; passes break on to port. |
|
\l - PROPRIETARY PROTOCOLS | |
|
Note: |
ERROR CORRECTION & DATA COMPRESSION |
|
Command |
Protocol |
|
í \l0 |
Sets stream MNP mode. |
|
\l1 |
Sets block MNP mode. |
|
\N - PROPRIETARY PROTOCOLS | |
|
Note: |
ERROR CORRECTION & DATA COMPRESSION |
|
Command |
Protocol |
|
í \N0 |
Sets mode normal. |
|
\N1 |
Sets mode direct. |
|
\N2 |
Sets mode reliable. |
|
\N3 |
Sets mode auto reliable. |
|
\O - PROPRIETARY PROTOCOLS | |
|
Note: |
ERROR CORRECTION & DATA COMPRESSION |
|
Command |
Protocol |
|
í \0 |
Tries to negotiate a reliable connection. Will only be successful if connection exists. Note: has to be last command in the line. |
|
\Tn - PROPRIETARY PROTOCOLS | |
|
Note: |
ERROR CORRECTION & DATA COMPRESSION |
|
Command |
Protocol |
|
í \Tn |
Programs inactivity timer; n= 0 to 42, def 0. |
|
\U - PROPRIETARY PROTOCOLS | |
|
Note: |
ERROR CORRECTION & DATA COMPRESSION |
|
Command |
Protocol |
|
í \U |
12 second wait for request from remote to negotiate link. Will only be successful if connection exists. Note: has to be last command in the line. |
|
\Y - PROPRIETARY PROTOCOLS | |
|
Note: |
ERROR CORRECTION & DATA COMPRESSION |
|
Command |
Protocol |
|
í \Y |
Transmits link request (originate mode)/ accepts request (answer mode). Will only be successful if connection exists. Note: has to be last command in the line. |
|
\Z - PROPRIETARY PROTOCOLS | |
|
Note: |
ERROR CORRECTION & DATA COMPRESSION |
|
Command |
Protocol |
|
í \Z |
Changes from reliable mode to normal mode & clears buffers. |
|
%C - PROPRIETARY PROTOCOLS | |
|
Note: |
ERROR CORRECTION & DATA COMPRESSION |
|
Command |
Protocol |
|
í %C0 |
Disables data compression (MNP) |
|
%C1 |
Enables data compression (MNP) |
|
%Dn - PROPRIETARY PROTOCOLS | |
|
Note: |
ERROR CORRECTION & DATA COMPRESSION |
|
Command |
Protocol |
|
í %D2 |
Sets dictionary size to 2048 (BLTZ.) |
|
%D0 |
Sets dictionary size to 512 (BLTZ). |
|
%D1 |
Sets dictionary size to 1024 (BLTZ). |
|
%D3 |
Sets dictionary size to 4096 single direction 2048 bi-directional (BLTZ). |
|
%En - PROPRIETARY PROTOCOLS | |
|
Note: |
ERROR CORRECTION & DATA COMPRESSION |
|
Command |
Protocol |
|
í %E0 |
Disable auto retrain. |
|
%E1 |
Enable auto retrain. |
|
%L - PROPRIETARY PROTOCOLS | |
|
Note: |
ERROR CORRECTION & DATA COMPRESSION |
|
Command |
Protocol |
|
í %L |
Echoes the received signal (Same strength) range -9dBm to -43dBm. |
|
%Mn - PROPRIETARY PROTOCOLS | |
|
Note: |
ERROR CORRECTION & DATA COMPRESSION |
|
Command |
Protocol |
|
í %M0 |
Disables BLTZ compression mode. |
|
%M1 |
Enables BLTZ transmit only compression mode. |
|
%M2 |
Enables BLTZ receive only compression mode. |
|
%M3 |
Enables BLTZ bi-directional compression mode. |
|
%P - PROPRIETARY PROTOCOLS | |
|
Note: |
ERROR CORRECTION & DATA COMPRESSION |
|
Command |
Protocol |
|
í %P |
Resets BLTZ dictionary (local) and transmits command to reset remote. |
|
%Q - PROPRIETARY PROTOCOLS | |
|
Note: |
ERROR CORRECTION & DATA COMPRESSION |
|
Command |
Protocol |
|
í %Q |
Returns the value of the EQM high order byte. |
|
%Sn - PROPRIETARY PROTOCOLS | |
|
Note: |
ERROR CORRECTION & DATA COMPRESSION |
|
Command |
Protocol |
|
í %Sn |
Sets BLTZ max number of characters compressed into single BLTZ word. Range 2 to 250, def 32 |
|
PROPRIETARY COMMAND SET | |||
|
Type: |
Configuration | ||
|
Format: |
ATS(register)=(Command Value) | ||
|
Example: |
ATS36=5 | ||
|
Description: |
Writes to or reads from a specified register. | ||
|
Register |
Command Value |
Function | |
|
S36 |
3 |
Negotiation failure - direct connect. | |
|
S36 |
4 |
Negotiation failure - normal connect. | |
|
S36 |
5 |
MNP attempt - direct connect if failure. | |
|
S36 |
7 |
MNP attempt - normal connect if failure. | |
|
PROPRIETARY COMMAND SET | |||
|
Type: |
Configuration | ||
|
Format: |
ATS(register)=(Command Value) | ||
|
Example: |
ATS37=10 | ||
|
Description: |
Writes to or reads from a specified register. | ||
|
Register |
Command Value |
Function | |
|
S37 |
10 |
Attempt to negotiate line speed 12,200 | |
|
S37 |
12 |
Attempt to negotiate line speed 7200 | |
|
PROPRIETARY COMMAND SET | |||
|
Type: |
Configuration | ||
|
Format: |
ATS(register)=(Command Value) | ||
|
Example: |
ATS46=138 | ||
|
Description: |
Writes to or reads from a specified register. | ||
|
Register |
Command Value |
Function | |
|
S46 |
138 |
Enable error compression & compression. | |
|
S46 |
136 |
Enable error compression & no compression | |
|
PROPRIETARY COMMAND SET | |||
|
Type: |
Configuration | ||
|
Format: |
ATS(register)=(Command Value) | ||
|
Example: |
ATS82=128 | ||
|
Description: |
Writes to or reads from a specified register. | ||
|
Register |
Command Value |
Function | |
|
S82 |
128 |
Transmit break in data sequence. | |
|
S82 |
3 |
Transmit break immediately; save data integrity. | |
|
S82 |
7 |
Transmit break immediately; data integrity lost. | |
