DIGICOM, SYSTEMS
CONNECTION 14.4+FAX
|
Modem Type |
Data/Fax |
|
Maximum Data Rate |
14.4K bps |
|
Maximum Fax Rate |
Unidentified |
|
Data Bus |
8-bit ISA |
|
Fax Class |
Unidentified |
|
Data Modulation Protocol |
Unidentified |
|
Fax Modulation Protocol |
Unidentified |
|
Error Correction/Compression |
ITU-T V.42, MNP |
|

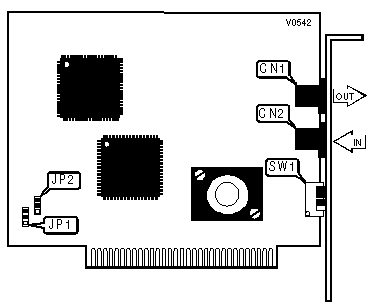

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Line out |
CN1 |
Line in |
CN2 |
|
COM PORT SETTINGS PRIMARY | |||||
|
COM |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
JP2 |
|
í COM4 & IRQ3 |
On |
On |
Off |
On |
Pins 2 & 3 closed |
|
COM2 & IRQ3 |
On |
Off |
Off |
On |
Pins 2 & 3 closed |
|
COM2 & IRQ9 |
On |
Off |
Off |
On |
Pins 1 & 2 closed |
|
COM4 & IRQ9 |
On |
On |
Off |
On |
Pins 1 & 2 closed |
|
COM PORT SETTINGS ALTERNATE | |||||
|
COM |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
JP1 |
|
COM1 & IRQ4 |
Off |
Off |
Off |
On |
Pins 1 & 2 closed |
|
COM3 & IRQ4 |
Off |
On |
Off |
On |
Pins 1 & 2 closed |
|
COM1 & IRQ5 |
Off |
Off |
Off |
On |
Pins 2 & 3 closed |
|
COM3 & IRQ5 |
Off |
On |
Off |
On |
Pins 2 & 3 closed |
