COMPUTER PERIPHERALS, INC.
INTERNAL 2400 REV. 1.01
|
Modem Type |
Data |
|
Maximum Data Rate |
2400 bps |
|
Maximum Fax Rate |
N/A |
|
Data Bus |
8-bit ISA |
|
Fax Class |
N/A |
|
Data Modulation Protocol |
Unidentified |
|
Fax Modulation Protocol |
N/A |
|
Error Correction/Compression |
Unidentified |
|

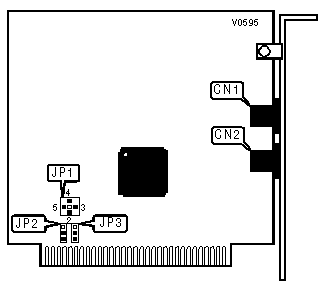

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Line in |
CN1 |
Line out |
CN2 |
|
COM PORT AND ADDRESS | |||
|
COM & ADDRESS |
JP1 |
JP2 |
JP3 |
|
COM1 & 3F8 - 3FFh |
Pins 1 & 4 closed |
Pins 2 & 3 closed |
Pins 2 &3 closed |
|
COM2 & 2F8 - 2FFh |
Pins 1 & 3 closed |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
COM3 & 3E8 - 3EFh |
Pins 1 & 4 closed |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
|
COM4 & 2E8 - 2EFh |
Pins 1 & 3 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
