COMPAQ COMPUTER CORPORATION

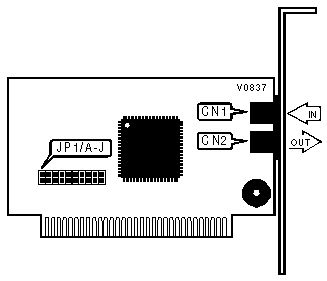

9.6K BPS FAX/DATA MODEM (VER. 2)
|
Modem Type |
Data (synchronous/asynchronous)/Fax |
|
Maximum Data Rate |
9600bps |
|
Maximum Fax Rate |
9600bps |
|
Data Bus |
8-bit ISA |
|
Fax Class |
Unidentified |
|
Data Modulation Protocol |
Unidentified |
|
Fax Modulation Protocol |
Unidentified |
|
Error Correction/Compression |
Unidentified |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Line in |
CN1 |
Line out |
CN2 |
|
ZERO WAIT STATE | ||
|
Setting |
JP1/A |
JP1/B |
|
í Enabled |
Open |
Closed |
|
Disabled |
Closed |
Open |
|
AUXILIARY INTERRUPT SELECT | ||
|
IRQ |
JP1/C |
JP1/D |
|
IRQ2 |
Closed |
Open |
|
IRQ5 |
Open |
Closed |
|
Disabled |
Open |
Open |
|
PORT CONFIGURATION | ||||||
|
COM/IRQ |
JP1/E |
JP1/F |
JP1/G |
JP1/H |
JP1/I |
JP1/J |
|
í COM2/IRQ3 |
Closed |
Open |
Closed |
Open |
Open |
Closed |
|
COM1/IRQ4 |
Open |
Closed |
Open |
Closed |
Open |
Closed |
|
COM3/IRQ4 |
Open |
Closed |
Open |
Closed |
Closed |
Open |
|
COM4/IRQ3 |
Closed |
Open |
Closed |
Open |
Closed |
Open |
