DIGI INTERNATIONAL, INC.
DIGICHANNEL FAX/2
|
Card Type |
Fax/Parallel |
|
Chip Set |
Rockwell |
|
I/O Options |
Parallel |
|
Maximum Fax Rate |
9600bps |
|
Data Bus |
16-bit ISA |
|
Fax Class |
Class I & II |
|
Fax Modulation Protocol |
ITU-T V.21CH2, V.27ter, V.29 |
|

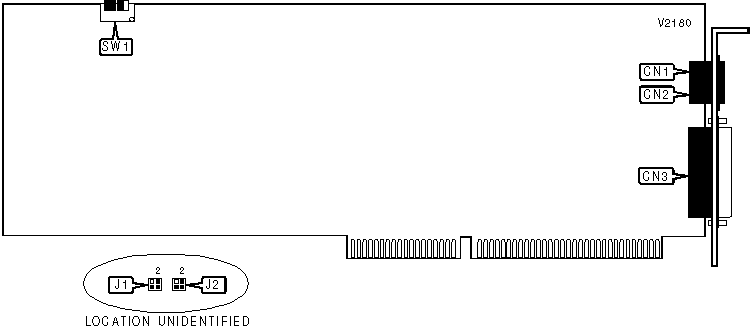

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Line 2 out (DigiCHANNEL FAX/2 only) |
CN1 |
Parallel port |
CN3 |
|
Line 1 out |
CN2 | ||
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Label |
Position |
|
Factory configured - do not alter |
J1 |
Pins 3 & 4 closed |
|
Factory configured - do not alter |
J2 |
Pins 3 & 4 closed |
|
BASE I/O ADDRESS | ||||
|
Setting |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
10Eh |
On |
On |
On |
Off |
|
11Eh |
On |
On |
Off |
On |
|
12Eh |
On |
On |
Off |
Off |
|
20Eh |
On |
Off |
On |
On |
|
22Eh |
On |
Off |
On |
Off |
|
30Eh |
On |
Off |
Off |
On |
|
32Eh |
On |
Off |
Off |
Off |
|
Board disabled |
On |
On |
On |
On |
