CARDINAL TECHNOLOGIES, INC.
9600BPS-V.32 V.42BIS FAX (INT)
|
Card Type |
Fax, Modem (asynchronous) |
|
Chip Set |
Unidentified |
|
Maximum Data Rate |
9600bps |
|
Maximum Fax Rate |
Unidentified |
|
Data Bus |
8-bit ISA |
|
Fax Class |
Unidentified |
|
Data Modulation Protocol |
Bell 103/212A ITU-T V.21, V.22, V.22bis, V.32 |
|
Fax Modulation Protocol |
Unidentified |
|
Error Correction/Compression |
MNP5, V.42, V.42bis |
|

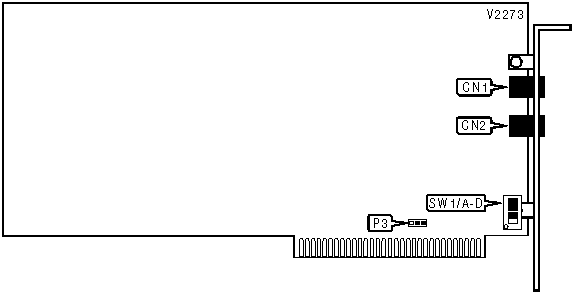

CONNECTIONS | ||||||
|
Function |
Label |
Function |
Label | |||
|
Line out/in |
CN1 |
Line in/out |
CN2 | |||
|
SERIAL PORT ADDRESS | ||
|
Setting |
SW1/A |
SW1/B |
|
COM1 (3F8h) |
On |
On |
|
COM2 (2F8h) |
Off |
On |
|
COM3 (3E8h) |
On |
Off |
|
COM4 (2E8h) |
Off |
Off |
|
INTERRUPT SELECTION | ||||
|
Setting |
SW1/C |
SW1/D |
P3/Pins 1 & 2 |
P3/Pins 2 & 3 |
|
2 |
N/A |
N/A |
Open |
Closed |
|
3 |
Off |
On |
N/A |
N/A |
|
4 |
On |
Off |
N/A |
N/A |
|
5 |
N/A |
N/A |
Closed |
Open |
Proprietary AT Command Set
|
COMMUNICATIONS MODE | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &Qn [cmds] |
|
Description: |
Selects communications mode options |
|
Command |
Mode |
|
&Q0 |
Asynchronous mode, serial port speed follows connect speed |
|
&Q1 |
Not used |
|
&Q2 |
Not used |
|
&Q3 |
Not used |
|
&Q4 |
Reports ‘OK’ |
|
í &Q5 |
Error correction mode |
|
&Q6 |
Asynchronous mode, buffered asynchronous mode |
See document V2267 for a full command summary.
