Card Type	Sound/Modem
Modem Chip Set	Rockwell RCV144ACi/SP
Sound Chip Set	Rockwell RCV144ACi/SP
I/O Options	CD-ROM interfaces (4), CD-ROM audio in (3), game/MIDI port, audio line in, audio line out, microphone in, telephone line out, speakerphone, VoiceView, wavetable
Maximum Data Rate	14.4Kbps
Maximum Fax Rate	14.4Kbps
Data Bus	16-bit ISA
Fax Class	Class I
Data Modulation Protocol	Bell 103A/212A ITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis
Fax Modulation Protocol	ITU-T V.17, V.21CH2, V.27ter, V.29
Error Correction/Compression	MNP5, MNP10, V.42, V.42bis

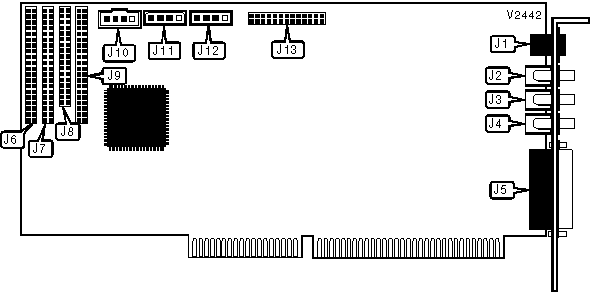

CONNECTIONS
Function	Label		Function		Label
Telephone line out		J1		Sony CD-ROM interface		J8
Audio line out		J2		IDE CD-ROM interface		J9
Audio line in		J3		Sony CD audio connector		J10
Microphone in		J4		Mitsumi CD audio connector		J11
Game/MIDI port		J5		Panasonic CD audio connector		J12
Panasonic CD-ROM interface		J6		Wavetable daughterboard header		J13
Mitsumi CD-ROM interface		J7
