Card Type	ISDN TA
Chipset	Motorola MC145572
ISDN Transfer Rate	56Kbps x 2/64Kbps x 2
ISDN Protocol	Unidentified
Switch Type	5ESS, DMS100, ITU-T, NI-1
Data Bus	16-bit ISA

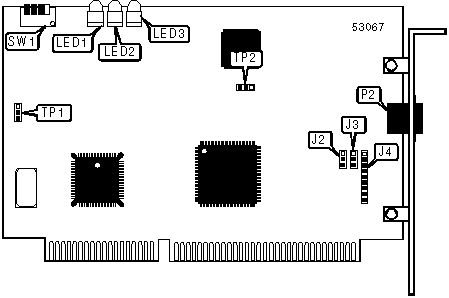

CONNECTIONS
Function	Label
ISDN U line out	P2

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Factory configured - do not alter	J2	Open
»	Factory configured - do not alter	J3	Open
»	Factory configured - do not alter	J4	Open
»	Factory configured - do not alter	TP1	Open
»	Factory configured - do not alter	TP2	Open
»	Factory configured - do not alter	SW1/4	N/A

BASE I/O ADDRESS
Setting	SW1/1	SW1/2	SW1/3
110h	On	On	Off
140h	On	Off	On
150h	On	Off	Off
300h	Off	On	On
310h	Off	On	Off
340h	Off	Off	On
350h	Off	Off	Off
Disabled	On	On	On

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Board is receiving data
LED1	Green	Off	Board is not receiving data
LED2	Green	On	Board is transmitting data
LED2	Green	Off	Board is not transmitting data
LED3	Green	On	Carrier signal detected
LED3	Green	Off	Carrier signal not detected
