DIALOGIC CORPORATION
GAMMAFAX CPI/100
|
Card Type |
Fax |
|
Processor |
80C188XC |
|
Processor Speed |
20MHz |
|
Chipset |
Rockwell 14.4 EFXL |
|
Maximum Fax Rate |
14.4Kbps |
|
Fax Modulation |
ITU-T V.17, V.27ter, V.29, V.33 |
|
Fax Class |
N/A |
|
Data Bus |
8-bit ISA |
|
Card Size |
Full height, half length |
|

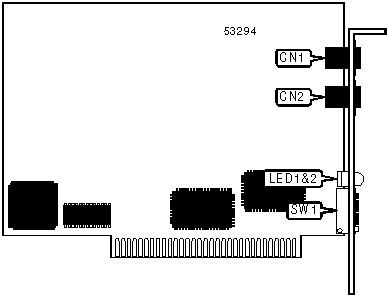

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Telephone line out |
CN1 |
Telephone line in |
CN2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Factory configured - do not alter |
SW1/6 |
Off |
|
BASE I/O ADDRESS SELECTION | |||||||
|
Setting |
Channel |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 | |
| » |
350h |
0 |
Off |
Off |
Off |
Off |
Off |
|
360h |
1 |
On |
Off |
Off |
Off |
Off | |
|
370h |
2 |
Off |
On |
Off |
Off |
Off | |
|
250h |
3 |
On |
On |
Off |
Off |
Off | |
|
260h |
4 |
Off |
Off |
On |
Off |
Off | |
|
270h |
5 |
On |
Off |
On |
Off |
Off | |
|
150h |
6 |
Off |
On |
On |
Off |
Off | |
|
160h |
7 |
On |
On |
On |
Off |
Off | |
|
100h |
8 |
Off |
Off |
Off |
On |
Off | |
|
104h |
9 |
On |
Off |
Off |
On |
Off | |
|
108h |
10 |
Off |
On |
Off |
On |
Off | |
|
10Ch |
11 |
On |
On |
Off |
On |
Off | |
|
110h |
12 |
Off |
Off |
On |
On |
Off | |
|
BASE I/O ADDRESS SELECTION (CON'T) | ||||||
|
Setting |
Channel |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
|
114h |
13 |
On |
Off |
On |
On |
Off |
|
118h |
14 |
Off |
On |
On |
On |
Off |
|
11Ch |
15 |
On |
On |
On |
On |
Off |
|
280h |
16 |
Off |
Off |
Off |
Off |
On |
|
284h |
17 |
On |
Off |
Off |
Off |
On |
|
288h |
18 |
Off |
On |
Off |
Off |
On |
|
28Ch |
19 |
On |
On |
Off |
Off |
On |
|
290h |
20 |
Off |
Off |
On |
Off |
On |
|
294h |
21 |
On |
Off |
On |
Off |
On |
|
298h |
22 |
Off |
On |
On |
Off |
On |
|
29Ch |
23 |
On |
On |
On |
Off |
On |
|
120h |
24 |
Off |
Off |
Off |
On |
On |
|
124h |
25 |
On |
Off |
Off |
On |
On |
|
128h |
26 |
Off |
On |
Off |
On |
On |
|
12Ch |
27 |
On |
On |
Off |
On |
On |
|
130h |
28 |
Off |
Off |
On |
On |
On |
|
134h |
29 |
On |
Off |
On |
On |
On |
|
138h |
30 |
Off |
On |
On |
On |
On |
|
13Ch |
31 |
On |
On |
On |
On |
On |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Board is off-hook |
|
LED1 |
Green |
Off |
Board is on-hook |
|
LED2 |
Yellow |
On |
Board is operational |
|
LED2 |
Yellow |
Off |
Board is not operational |
|
Note:The locations of the individual LEDs are unidentified. | |||
