DIALOGIC CORPORATION
DIALOG/4
|
Card Type |
Telephony (voice) |
|
Chipset |
Unidentified |
|
Line Type |
PBX |
|
Data Bus |
8-bit ISA |
|
Card Size |
Full height, one-half length |
|

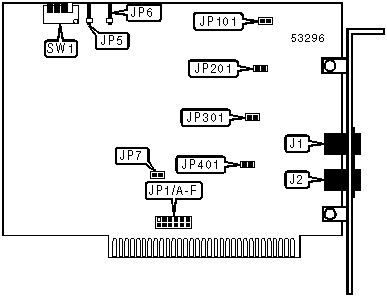

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Telephone lines 1 & 2 out |
J1 |
Telephone lines 3 & 4 out |
J2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Board is interrupt master |
JP7 |
Closed |
|
Board is interrupt slave |
JP7 |
Open | |
| » |
Line 1 set to normal ring sensitivity |
JP101 |
Open |
|
Line 1 set to high ring sensitivity |
JP101 |
Closed | |
| » |
Line 2 set to normal ring sensitivity |
JP201 |
Open |
|
Line 2 set to high ring sensitivity |
JP201 |
Closed | |
| » |
Line 3 set to normal ring sensitivity |
JP301 |
Open |
|
Line 3 set to high ring sensitivity |
JP301 |
Closed | |
| » |
Line 4 set to normal ring sensitivity |
JP401 |
Open |
|
Line 4 set to high ring sensitivity |
JP401 |
Closed | |
| » |
Lines ring without answer (on-hook) before firmware initialization |
SW1/4 |
Off |
|
Lines are busy (off-hook) before firmware initialization |
SW1/4 |
On | |
|
INTERRUPT SELECTION | |||||||
|
Setting |
JP1/A |
JP1/B |
JP1/C |
JP1/D |
JP1/E |
JP1/F | |
|
2/9 |
Closed |
Open |
Open |
Open |
Open |
Open | |
| » |
3 |
Open |
Closed |
Open |
Open |
Open |
Open |
|
4 |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
5 |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
6 |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
7 |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
Note:All DIALOG/4 boards installed in the system should be set to the same interrupt. | |||||||
|
SHARED RAM ADDRESS SELECTION | ||||||
|
Setting |
JP5 |
JP6 |
SW1/1 |
SW1/2 |
SW1/3 | |
|
A0000h |
Closed |
Open |
Off |
Off |
Off | |
|
A2000h |
Closed |
Open |
Off |
Off |
On | |
|
A4000h |
Closed |
Open |
Off |
On |
Off | |
|
A6000h |
Closed |
Open |
Off |
On |
On | |
|
A8000h |
Closed |
Open |
On |
Off |
Off | |
|
AA000h |
Closed |
Open |
On |
Off |
On | |
|
AC000h |
Closed |
Open |
On |
On |
Off | |
|
AE000h |
Closed |
Open |
On |
On |
On | |
|
B8000h |
Closed |
Closed |
On |
Off |
Off | |
|
BA000h |
Closed |
Closed |
On |
Off |
On | |
|
BC000h |
Closed |
Closed |
On |
On |
Off | |
|
BE000h |
Closed |
Closed |
On |
On |
On | |
|
C0000h |
Open |
Closed |
Off |
Off |
Off | |
|
C2000h |
Open |
Closed |
Off |
Off |
On | |
|
C4000h |
Open |
Closed |
Off |
On |
Off | |
|
C6000h |
Open |
Closed |
Off |
On |
On | |
|
C8000h |
Open |
Closed |
On |
Off |
Off | |
|
CA000h |
Open |
Closed |
On |
Off |
On | |
|
CC000h |
Open |
Closed |
On |
On |
Off | |
|
CE000h |
Open |
Closed |
On |
On |
On | |
| » |
D0000h |
Open |
Open |
Off |
Off |
Off |
|
D2000h |
Open |
Open |
Off |
Off |
On | |
|
D4000h |
Open |
Open |
Off |
On |
Off | |
|
D6000h |
Open |
Open |
Off |
On |
On | |
|
D8000h |
Open |
Open |
On |
Off |
Off | |
|
DA000h |
Open |
Open |
On |
Off |
On | |
|
DC000h |
Open |
Open |
On |
On |
Off | |
|
DE000h |
Open |
Open |
On |
On |
On | |
