DIALOGIC CORPORATION
ANTARES BOARD
|
Card Type |
Telephony |
|
Chipset |
Unidentified |
|
Maximum Onboard Memory |
Unidentified |
|
I/O Options |
PEB/SCbus connector |
|
Data Bus |
16-bit ISA |
|
Card Size |
Full height, full length |
|

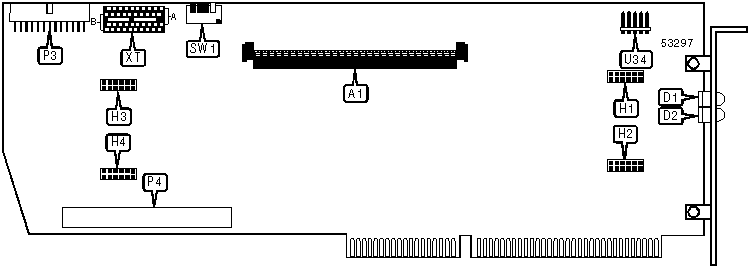

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Header for DSP emulator |
H1 |
PEM bus/SCbus connector |
P3 |
|
Header for DSP emulator |
H2 |
Daughterboard header |
P4 |
|
Header for DSP emulator |
H3 |
Dongle connector |
U34 |
|
Header for DSP emulator |
H4 | ||
|
USER CONFIGURABLE SETTINGS | ||
|
Setting |
Label |
Position |
|
PEB bus terminated |
XT |
Position B |
|
PEB bus not terminated |
XT |
Not installed |
|
DRAM CONFIGURATION |
|
The configuration of the memory is unidentified. |
|
BASE I/O ADDRESS SELECTION | |||||
|
Setting |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 | |
| » |
200h |
On |
On |
On |
On |
|
208h |
Off |
On |
On |
On | |
|
210h |
On |
Off |
On |
On | |
|
218h |
Off |
Off |
On |
On | |
|
220h |
On |
On |
Off |
On | |
|
228h |
Off |
On |
Off |
On | |
|
230h |
On |
Off |
Off |
On | |
|
238h |
Off |
Off |
Off |
On | |
|
240h |
On |
On |
On |
Off | |
|
248h |
Off |
On |
On |
Off | |
|
250h |
On |
Off |
On |
Off | |
|
258h |
Off |
Off |
On |
Off | |
|
260h |
On |
On |
Off |
Off | |
|
268h |
Off |
On |
Off |
Off | |
|
270h |
On |
Off |
Off |
Off | |
|
278h |
Off |
Off |
Off |
Off | |
|
DIAGNOSTIC LED(S) |
|
The colors and functions of the LEDs are unidentified. |
