Card Type	Modem, Fax
I/O Options	RJ-11 line in, RJ-11 line out
Maximum Data Rate	33.6Kbps
Maximum Fax Rate	14.4Kbps
Data Modulation	Bell 103A, 212A ITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis, V.34, V.34bis
Fax Modulation	ITU-T V.17, V.29, V.27ter, V.21CH.2
Error Correction/Compression	MNP5, V.42, V.42bis
Fax Class	Class I & II
Data Bus	16-bit ISA

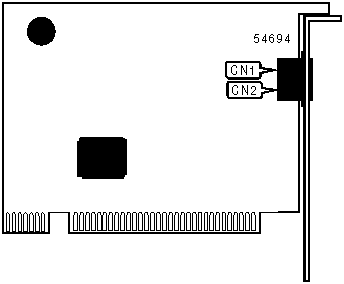

CONNECTIONS
Function	Label	Function	Label
RJ-11 line	CN1	RJ-11 line	CN2

SUPPORTED STANDARD COMMANDS

Basic AT Commands

AT, A/

A, E, H, L, M, O, P, Q, T, V, W, X, Y, Z

&C, &F, &G, &P, &W, &Y, &Z

Extended AT Commands

\A, \B, \G, \K, \L, \N

%C, %L

S-Registers

S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S12, S18, S25, S30, S32, S33, S38, S91

Note: See MHI help file for complete information.

AUTO-MODE DETECTION
Type:	Configuration
Format:	AT [cmds] Nn [cmds]
Description:	Selects various options for the automatic detection and negotiation of protocols during the handshake process if the modem is communicating with a remote modem of dissimilar speed.
Command	Function
N0	When originating or answering; handshake only at DTE to modem rate
í N1	When originating or answering; handshake at DTE to modem rate. Modem can shift to a lower speed if necessary

COMMUNICATION PROTOCOLS
Type:	Configuration
Format:	AT [cmds] Bn [cmds]
Description:	Selects the communication protocol for data calls
Note: The B command allows the simultaneous selection of more than one suffix, enabling multiple protocols.
Command	Protocol
B0	ITU-T V.22 at 300 or 1200bps
B1	Bell 212A at 300 or 1200bps
B2	V.23 at 75bps transmit, 1200bps receive in originate mode; 1200bps transmit, 75bps receive in answer mode

CONFIGURATION PROFILES
Type:	Immediate
Format:	AT [cmds] &V [cmds]
Description:	Displays active and stored configuration profiles
Command	Function
&V0	Display active profile
&V1	Display stored profiles
&V2	Display stored telephone numbers

DATA SET READY (DSR)
Type:	Configuration
Format:	AT [cmds] &Sn [cmds]
Description:	Selects DSR options
Command	Function
&S0	DSR forced high
&S1	DSR high only while modem is handshaking or connected

DATA TERMINAL READY (DTR)
Type:	Configuration
Format:	AT [cmds] &Dn [cmds]
Description:	Selects modem response to DTR
Command	Function
&D0	DTR is ignored (assumed on)
&D1	Modem goes to command mode after DTR goes is off
í &D2	Modem goes to command mode and disconnects (hangs up) after DTR goes off; Auto-Answer is disabled.
&D3	Modem is initialized after DTR goes off

DIAL
Type:	Immediate
Format:	AT [cmds] D<#> [cmds]
Description:	Dials telephone number according to any modifiers included in the string
Note:	Any combination of modifiers can be used to produce the desired dial functions in sequence.
Command	Function
DL	Re-dial last number
DW	Dialing resumed following dial tone detection
DP	Pulse dialing enabled
DR	Answer mode enabled; originate mode disabled following handshake initiation.
DS=n	Dial stored telephone number n
DT	Tone dialing enabled/Pulse dialing disabled
D,	Dialing paused for amount of time specified in S8 register
D!	Flash function initiated. Modem commanded to go off-hook for specified time before returning on-hook.
D@	Wait for Quite Answer function enabled. Modem waits until a "quiet answer," a ring-back signal followed by silence up to the time specified in S7, is received prior to executing the rest of the dial string.

FLOW CONTROL
Type:	Configuration
Format:	AT [cmds] &Kn [cmds]
Description:	Enables flow control options
Command	Function
&K0	Flow control disabled
&K3	RTS/CTS flow control enabled
&K4	XON/XOFF flow control enabled
&K5	Transparent XON/XOFF flow control enabled
&K6	RTS/CTS and XON/XOFF flow control enabled

REPORT INFORMATION
Type:	Immediate
Format:	AT [cmds] In [cmds]
Description:	Displays information requested
Command	Function
I0	Reports product code
I1	Reports hardware variation code
I2	Reports internal code
I3	Reports software revision number
I4	Reports product feature

TEST MODES
Type:	Immediate
Format:	AT [cmds] &Tn
Description:	Selects test options
Command	Function
í &T0	End current test
&T1	Begin local analog loopback test

TRELLIS CODING
Type:	Configuration
Format:	AT [cmds] &Un
Description:	Enables/disables Trellis coding
Command	Function
í &U0	Trellis modulation enabled
&U1	Trellis modulation disabled

AUTO-RETRAIN - AUTO-FALLBACK/FALL-FORWARD
Type:	Configuration
Format:	AT [cmds] %En [cmds]
Description:	Controls auto-retrain mode and fallback/fall-forward
Command	Function
%E0	Auto-retrain disabled
%E1	Auto-retrain enabled
%E2	Auto-retrain, fallback/fall-forward enabled
%E3	Auto-retrain, fast hang-up enabled

CPU SOURCE LOADING
Type:	Configuration
Format:	AT [cmds] %N [cmds]
Description:	Sets dynamic CPU loading percentage
Command	Function
%N0	Dynamic CPU loading disabled
%N1	Dynamic CPU loading not to exceed 10%
%N2	Dynamic CPU loading not to exceed 20%
%N3	Dynamic CPU loading not to exceed 30%
%N4	Dynamic CPU loading not to exceed 40%
%N5	Dynamic CPU loading not to exceed 50%
%N6	Dynamic CPU loading not to exceed 60%
%N7	Dynamic CPU loading not to exceed 70%
%N8	Dynamic CPU loading not to exceed 80%
%N9	Dynamic CPU loading not to exceed 90%

LINE SIGNAL QUALITY
Type:	Immediate
Format:	AT [cmds] %Q [cmds]
Range:	0-255
Unit:	Unidentified
Description:	Returns a value which indicates line signal quality

CONNECTION FAILURE CODES
Type:	Register
Format	AT [cmds] S86? [cmds]
Description:	Reports codes which correspond to the possible causes of a connection failure
Value	Meaning
0	Normal hang up
4	Carrier signal lost
5	No error-control detected for remote modem during feature negotiation
6	Remote modem failed to respond to feature negotiation
9	No common protocol found
12	No failure - remote modem disconnected normally
13	Remote modem failed to respond after 10 re-transmissions same message
14	Violation of negotiated protocol caused failure
20	Long Space Disconnect time limit reached

DCE LINE SPEED
Type:	Register
Format	AT [cmds] S37=n [cmds]
Description:	Sets the maximum allowable data exchange rate attempted during handshake process.
Command	Function
S37=0	Connect at highest possible speed
S37=3	Connect at 300bps
S37=4	Connect at 1200bps
S37=6	Connect at 2400bps
S37=7	Connect at 4800bps
S37=8	Connect at 7200bps
S37=9	Connect at 9600bps
S37=10	Connect at 12.0Kbps
S37=11	Connect at 14.4Kbps
S37=12	Connect at V.34

V.34 BIT RATE
Type:	Register
Format	AT [cmds] S34=n [cmds]
Range	0-5
Description:	Sets the maximum bit rate for V.34. Settings are unidentified.

V.34 BAUD RATE
Type:	Register
Format	AT [cmds] S35=n [cmds]
Range	0-5
Description:	Sets the maximum baud rate for V.34. Settings are unidentified.
