Card Type	Modem, Fax
Chip Set	Unidentified
I/O Options	Speaker out, microphone, RJ-11 (2)
Maximum Modem Rate	28.8Kbps
Maximum Fax Rate	14.4Kbps
Data Modulation Protocol	Bell 103A/212A ITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis, V.34, V.Fast
Fax Modulation Protocol	ITU-T V.17, V.27ter, V.29, Unidentified
Error Correction/Compression	MNP10,MNP5, V.42, V.42bis, Unidentified
Fax Class	Class I
Data Bus	16-bit ISA
Card Size	Half-length, half-height card

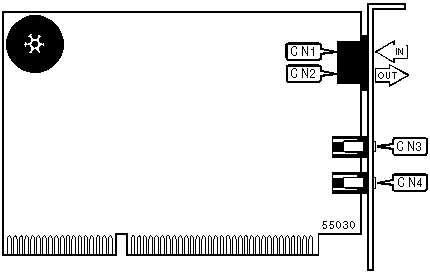

CONNECTIONS
Function	Label		Function		Label
Line in		CN1		Speaker out		CN3
Line out		CN2		Microphone		CN4

SUPPORTED COMMAND SET

Basic AT Commands

AT, ‘+++’, A/

A, B, D, E, H, M, O, Q, V, W, X,

&C, &V

Extended AT Commands

%C, %G

S Registers

S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, S25, S36, S38

Special Commands

+MS

Note: See MHI Help File for full command documentation.

AUTO-MODE DETECTION
Type:	Configuration
Format:	AT [cmds] Nn [cmds]
Description:	Selects various options for the automatic detection and negotiation of protocols during the handshake process if the modem is communicating with a remote modem of dissimilar speed.
Command	Function
N0	Auto-mode detection disabled
í N1	In originate mode, handshake begins at line speed designated by the S37 register. Modem can shift to a slower speed if necessary. In answer mode, handshake attempted with the following protocols in order - V.FC, V.32bis, V.32, V.22bis, V.22 or Bell 212, V.21, and Bell 103

COMMUNICATIONS MODE
Type:	Configuration
Format:	AT [cmds] &Qn [cmds]
Description:	Selects communications mode options
Command	Mode
í &Q0	Asynchronous mode, serial port speed follows connect speed.
&Q5	Error correction mode

DATA TERMINAL READY (DTR)
Type:	Configuration
Format:	AT [cmds] &Dn [cmds]
Description:	Selects modem response to DTR
Command	Function
í &D0	Modem does not respond to DTR
&D1	Modem goes to command mode after DTR goes is off
&D2	Modem goes to command mode and disconnects (hangs up) after DTR goes off; Auto-Answer is disabled.
&D3	Modem is initialized after DTR goes off

FACTORY DEFAULT PROFILE
Type:	Configuration
Format:	AT [cmds] &F [cmds]
Description:	Sets values in active profile to values found in the default profile
Command	Function
&F0	Direct mode, no flow control
í &F2	Reliable mode, flow control enabled

FLOW CONTROL
Type:	Configuration
Format:	AT [cmds] &Kn [cmds]
Description:	Enables flow control options
Command	Function
&K0	Flow control disabled
í &K3	RTS/CTS flow control enabled
&K4	XON/XOFF flow control enabled
&K5	Transparent XON/XOFF flow control enabled

REPORT INFORMATION
Type:	Immediate
Format:	AT [cmds] In [cmds]
Description:	Displays information requested
Command	Function
I0	Reports product code ID
I1	Reports ROM checksum
I2	Tests and reports ROM checksum
I3	Reports ROM code revision number
I4	Reports supported protocols in encrypted format
I5	Reports firmware copyright information
I7	Reports data pump model
I10	Reports optional features supported by the modem

SPEAKER VOLUME
Type:	Configuration
Format:	AT [cmds] Ln [cmds]
Description:	Controls speaker volume
Command	Function
L0	Low volume setting
í L2	Medium volume setting
L3	Highest volume setting

CONNECT MODE
Type:	Configuration
Format:	AT [cmds] \Nn [cmds]
Description:	Controls the type of connection the modem will operate in
Command	Function
\N0	Normal mode enabled
\N1	Direct mode enabled
\N2	Reliable mode enabled
\N3	Auto-reliable mode enabled
\N4	V.42 reliable mode enabled

REQUEST A RETRAIN
Type:	Configuration
Format:	AT [cmds] %En [cmds]
Description:	Controls the retrain request
Command	Function
%E0	Do not request a retrain
%E1	Request a retrain

CONNECTION FAILURE CODES
Type:	Register
Format	AT [cmds] S86? [cmds]
Description:	Reports codes which correspond to the possible causes of a connection failure
Value	Meaning
0	Normal hang up
4	Carrier signal lost
5	No error-control detected for remote modem during feature negotiation
9	No common protocol found
12	No failure - remote modem disconnected normally
13	Remote modem failed to respond after 10 re-transmissions same message
14	Violation of negotiated protocol caused failure

DCE LINE SPEED
Type:	Register
Format	AT [cmds] S37=n [cmds]
Description:	Sets the maximum allowable data exchange rate attempted during handshake process.
Command	Function
í S37=0	Speed of last connection
S37=1	300bps
S37=5	1200bps
S37=6	2400bps
S37=8	4800bps
S37=9	9600bps
S37=10	12000bps
S37=11	14400bps
S37=12	7200bps

ERROR CORRECTION/COMPRESSION
Type:		Register
Format:	AT [cmds] S46=n [cmds]
Default:	136, 138
Range:	138
Description:	Selects active error correction and compression protocols
Command		Function
S46=136		Active error correction and compression protocols disabled
S46=138		Active error correction and compression protocols enabled

EXTENDED RESULT CODES
Type:		Register
Format		AT [cmds] S95=n [cmds]
Range:		0-255
Unit:		Bit-mapped
Description:		Works in combination with the Wn command to enable extended result codes. Features enabled by S95 take precedence over the options selected by Wn.
Bit	Value	Function
0	0 1	CONNECT result code reports DTE speed. CONNECT result code reports line speed instead DTE speed.
1	0 1	Verbose CONNECT result codes display DTE or line speed only. Adds "/ARQ" to all verbose CONNECT result codes except "NONE."
2	0 1	CARRIER result codes disabled. CARRIER result codes enabled.
3 - 4	0	Reserved
5	0 1	COMPRESSION result codes disabled. COMPRESSION result codes enabled.

FEATURE NEGOTIATION OPTIONS
Type:			Register
Format:	AT [cmds] S48=n [cmds]
Description:	Selects active error correction and compression protocols
Command		Function
S48=0		Detection negotiation disabled, XID negotiation disabled
í S48=7		Detection negotiation and XID negotiation enabled
S48=128		Fall-back to options set in S36
