GATEWAY 2000
TELEPATH DATA/FAX
|
Modem Type |
Data (Asynchronous/Synchronous)/Fax |
|
Maximum Data Rate |
14.4Kbps |
|
Maximum Fax Rate |
9600bps |
|
Data Bus |
8-bit ISA |
|
Fax Class |
Class I & II |
|
Data Modulation Protocol |
Bell 103A & 212A, CCITT V.32bis & V.32 & V.22 V.22bis & V.21 |
|
Fax Modulation Protocol |
CCITT V.17 & V.29 & V.27ter |
|
Error Correction/Compression |
CCITT V.42 & V.42bis & MNP 2-5 |
|

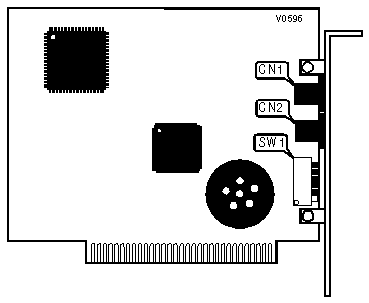

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Line in |
CN1 |
Line out |
CN2 |
|
COM PORT SETTINGS | ||
|
COM |
SW1/1 |
SW1/2 |
|
COM1 |
On |
On |
|
COM2 |
Off |
On |
|
COM3 |
On |
Off |
|
COM4 |
Off |
Off |
|
INTERRUPT SELECT | ||||
|
IRQ |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
IRQ2 |
Off |
Off |
Off |
On |
|
IRQ3 |
Off |
Off |
On |
Off |
|
IRQ4 |
Off |
On |
Off |
Off |
|
IRQ5 |
On |
Off |
Off |
Off |
