Card Type	Modem (asynchronous)
Chip Set	Rockwell
Maximum Data Rate	14.4Kbps
Maximum Fax Rate	14.4Kbps
Data Bus	8-bit ISA
Fax Class	Unidentified
Data Modulation Protocol	Unidentified
Fax Modulation Protocol	Unidentified
Error Correction/Compression	Unidentified

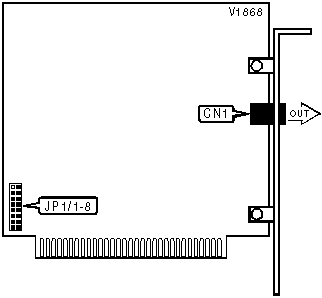

CONNECTIONS
Function	Label
Line out		CN1

SERIAL PORT ADDRESS
Setting	JP1/1	JP1/2	JP1/4	JP1/6
COM1 (3F8h)	Open	Closed	Closed	Open
í COM2 (2F8h)	Open	Closed	Open	Closed
COM3 (3E8h)	Closed	Open	Closed	Open
COM4 (2E8h)	Closed	Open	Open	Closed

INTERRUPT
Setting	JP1/3	JP1/5	JP1/7	JP1/8
í 3	Open	Closed	Open	Open
4	Closed	Open	Open	Open
5	Open	Open	Closed	Open
7	Open	Open	Open	Closed
