EICON TECHNOLOGY CORPORATION
EICON/G. DIEHL QUADRO
|
Card Type |
ISDN TA |
|
Chip Set |
Unidentified |
|
Transfer Rate |
64Kbps x 4 |
|
Data Bus |
16-bit ISA |
|
ISDN Protocol |
1TR6, ATEL, AT&T, Northern, DMS100, DSS1, ETSI, Q.931, other country specific |
|

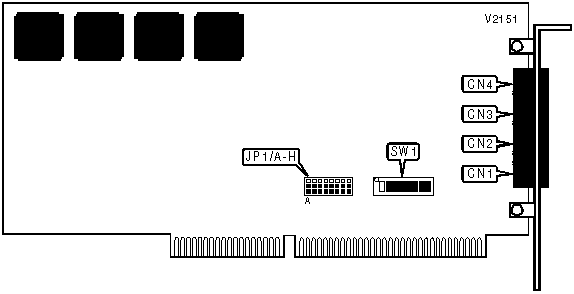

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
ISDN line 1 |
CN1 |
ISDN line 3 |
CN3 |
|
ISDN line 2 |
CN2 |
ISDN line 4 |
CN4 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Factory configured - do not alter |
SW1/1 |
On |
| » |
Factory configured - do not alter |
SW1/2 |
On |
|
BASE I/O ADDRESS SELECTION | ||||||
|
Setting |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
8000h |
On |
On |
On |
On |
On |
On |
|
8200h |
Off |
On |
On |
On |
On |
On |
|
8400h |
On |
Off |
On |
On |
On |
On |
|
8600h |
Off |
Off |
On |
On |
On |
On |
|
8800h |
On |
On |
Off |
On |
On |
On |
|
D000h |
On |
On |
On |
Off |
On |
Off |
|
F600h |
Off |
Off |
On |
Off |
Off |
Off |
|
F800h |
On |
On |
Off |
Off |
Off |
Off |
|
FA00h |
Off |
On |
Off |
Off |
Off |
Off |
|
FC00h |
On |
Off |
Off |
Off |
Off |
Off |
|
FE00h |
Off |
Off |
Off |
Off |
Off |
Off |
|
Note:A total of 64 base address settings are available. The switches are a binary representation of the decimal memory addresses. SW1/8 is the Most Significant Bit and switch SW1/3 is the Least Significant Bit. The switches have the following decimal values: SW1/8=16384, SW1/7=8192, SW1/6=4096, SW1/5=2048, SW1/4=1024, SW1/3=512. Turn switches off and add their values to a base value of 32768. Convert to hexadecimal to obtain the correct memory address. (Off=1, On=0) | ||||||
|
INTERRUPT | ||||||||
|
IRQ |
JP1/A |
JP1/B |
JP1/C |
JP1/D |
JP1/E |
JP1/F |
JP1/G |
JP1/H |
|
2 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Pins 1 & 2 |
|
3 |
Open |
Open |
Open |
Open |
Open |
Open |
Pins 1 & 2 |
Open |
|
4 |
Open |
Open |
Open |
Open |
Open |
Pins 1 & 2 |
Open |
Open |
|
5 |
Open |
Open |
Open |
Open |
Pins 1 & 2 |
Open |
Open |
Open |
|
7 |
Open |
Open |
Open |
Pins 1 & 2 |
Open |
Open |
Open |
Open |
|
10 |
Open |
Open |
Pins 1 & 2 |
Open |
Open |
Open |
Open |
Open |
|
11 |
Open |
Pins 1 & 2 |
Open |
Open |
Open |
Open |
Open |
Open |
|
12 |
Pins 1 & 2 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
Note:Pins designated are in the closed position. | ||||||||
