Card Type	Modem
Chipset	Cirrus Logic
I/O Options	Data, Fax, Voice
Maximum Data Rate	14.4Kbps
Maximum Fax Rate	14.4Kbps
Data Bus	8-bit ISA
Fax Class	Unidentified
Data Modulation	Unidentified
Fax Modulation	Unidentified
Error Correction/Compression	Unidentified

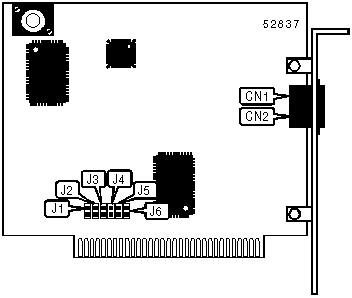

CONNECTIONS
Function	Label	Function	Label
Line in	CN1	Line out	CN2

SERIAL PORT ADDRESS SELECTION
Setting	J1	J2
3F8h (COM1:)	Closed	Closed
2F8h (COM2:)	Open	Closed
3E8h (COM3:)	Closed	Open
2E8h (COM4:)	Open	Open

INTERRUPT SELECTION
Setting	J3	J4	J5	J6
IRQ2	Closed	Open	Open	Open
IRQ3	Open	Closed	Open	Open
IRQ4	Open	Open	Closed	Open
IRQ5	Open	Open	Open	Closed

SUPPORTED STANDARD COMMANDS

The command set is unidentified.
