FRANKLIN TELECOMMUNICATIONS CORPORATION
ICV-4
|
Card Type |
Telephony |
|
Chipset |
Unidentified |
|
I/O Options |
FABB bus, MVIP bus, telephone line in (4) |
|
Data Bus |
8-bit ISA |
|
Card Size |
Full height, three-quarters length |
|

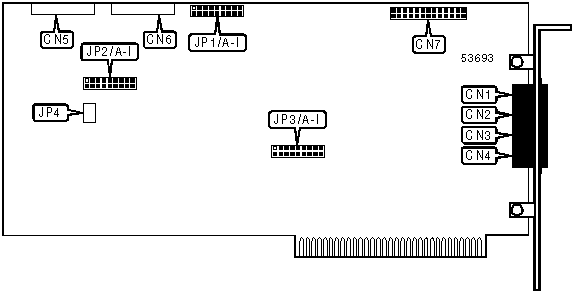

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Telephone line 1 |
CN1 |
Franklin Above Board Bus |
CN5 |
|
Telephone line 2 |
CN2 |
Franklin Above Board Bus |
CN6 |
|
Telephone line 3 |
CN3 |
MVIP bus |
CN7 |
|
Telephone line 4 |
CN4 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Factory configured - do not alter |
JP1/I |
Open |
| » |
Factory configured - do not alter |
JP2/I |
Open |
| » |
Factory configured - do not alter |
JP4 |
Unidentified |
|
TRANSMIT STREAM SELECTION | |||||||||
|
MVIP |
FABB |
JP1/A |
JP1/B |
JP1/C |
JP1/D |
JP1/E |
JP1/F |
JP1/G |
JP1/H |
|
0 |
0 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
1 |
1 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
|
2 |
2 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
3 |
3 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
|
4 |
N/A |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
|
5 |
N/A |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
|
6 |
N/A |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
|
7 |
N/A |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
|
RECEIVE STREAM SELECTION | |||||||||
|
MVIP |
FABB |
JP2/A |
JP2/B |
JP2/C |
JP2/D |
JP2/E |
JP2/F |
JP2/G |
JP2/H |
|
0 |
0 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
1 |
1 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
|
2 |
2 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
3 |
3 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
|
4 |
N/A |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
|
5 |
N/A |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
|
6 |
N/A |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
|
7 |
N/A |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
|
BASE I/O ADDRESS SELECTION | |||||||||
|
Setting |
JP3/A |
JP3/B |
JP3/C |
JP3/D |
JP3/E |
JP3/F |
JP3/G |
JP3/H |
JP3/I |
|
200h |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
|
201h |
Open |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
|
202h |
Closed |
Open |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
|
203h |
Open |
Open |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
|
204h |
Closed |
Closed |
Open |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
|
3FBh |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
|
3FCh |
Closed |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
3FDh |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
3FEh |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
3FFh |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
Note: A total of 512 base address settings are available. The jumpers are a binary representation of the decimal memory addresses. JP3/I is the Most Significant Bit and jumper JP3/A is the Least Significant Bit. The jumpers have the following decimal values: JP3/A=1, JP3/B=2, JP3/C=4, JP3/D=8, JP3/E=16, JP3/F=32, JP3/G=64, JP3/H=128, JP3/I=256. Open the jumpers and add 512 to the values of the jumpers that are open to obtain the correct memory address. (Open=1, Closed=0) | |||||||||
