EICON TECHNOLOGY CORPORATION
EICONCARD S50
|
Card Type |
ISDN TA |
|
Chip Set |
Motorola |
|
Transfer Rate |
2.048Mbps |
|
ISDN Protocol |
PPP, SDLC, HDLC |
|
Error Correction/Compression |
Generic Lempel-Ziv |
|
I/O Options |
Daughterboard headers |
|
Switch Type |
Unidentified |
|
Data Bus |
16-bit ISA |
|

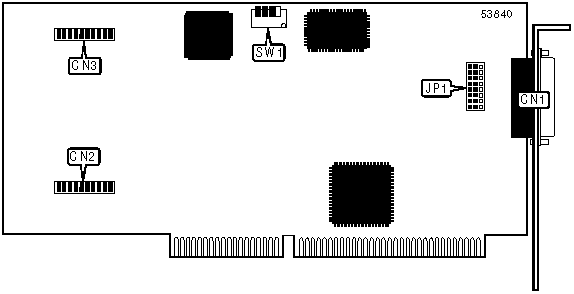

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
V.24, V.35, or X.21 via DB-26 connector |
CN1 |
Compression daughterboard header |
CN3 |
|
Compression daughterboard header |
CN2 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
V.24 or V.35 interface |
JP1 |
Pins 1 & 2 closed |
|
X.21 interface |
JP1 |
Pins 2 & 3 closed | |
| » |
Card will use primary I/O address |
SW1/1 |
Off |
|
Card will use secondary I/O address |
SW1/1 |
On | |
|
Note: A single-block jumper is provided for JP1. It closes all pins 1 & 2 or all pins 2 & 3 simultaneously. | |||
|
BASE I/O ADDRESS | |||||
|
Primary |
Secondary |
SW1/2 |
SW1/3 |
SW1/4 | |
|
278h |
678h |
Off |
Off |
Off | |
|
280h |
680h |
Off |
Off |
On | |
|
378h |
778h |
Off |
On |
Off | |
| » |
380h |
780h |
Off |
On |
On |
|
380h |
780h |
On |
Off |
Off | |
|
388h |
788h |
On |
Off |
On | |
|
390h |
790h |
On |
On |
Off | |
|
398h |
798h |
On |
On |
On | |
|
Note: If a card is set to use a secondary address, no other card in the system may be set to its associated primary address except for another EiconCard. | |||||
