Card Type	Modem
Chip Set	Unidentified
I/O Options	Line in, line out, wake-up ring connector
Maximum Modem Rate	56Kbps
Maximum Fax Rate	14.4Kbps
Data Modulation Protocol	Bell 103/212A ITU-T V.21, V.22, V.22bis, V.32 V.32bis, V.34
Fax Modulation Protocol	ITU-T V.17, V.21 CH2, V.27ter, V.29
Error Correction/Compression	MNP5, V.42, V.42bis
Fax Class	Class I & II
Data Bus	16-bit ISA

CONNECTIONS
Function	Label		Function		Label

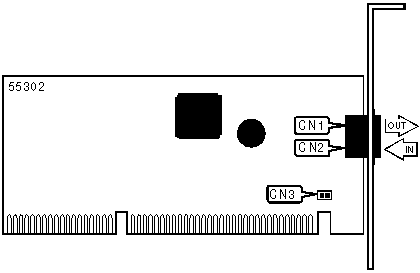

Line out (RJ-11)		CN1		Wake-up ring connector		CN3
Line in (RJ-11)		CN2

SUPPORTED COMMAND SET

Basic AT Commands

AT, ‘+++’, A/

A, E, H, M, O, P, Q, T, V, W, X, Z

&C, &P, &V, &Y, &Z

Extended AT Commands

\A, \B, \G, \L \N, \K

%C

S Registers

S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, S14, S16, S21, S22, S29, S32, S33

Note: See MHI Help File for full command documentation.

AUTO-MODE DETECTION
Type:	Configuration
Format:	AT [cmds] Nn [cmds]
Description:	Selects various options for the automatic detection and negotiation of protocols during the handshake process if the modem is communicating with a remote modem of dissimilar speed.
Command	Function
N0	Auto-mode detection disabled
í N1	Auto-mode detection enabled

AUXILIARY RELAY CONTROL
Type:	Configuration
Format:	AT [cmds] &Jn [cmds]
Description:	Enables/disables A/A1 relay driver. Not for use with RJ-11 phone lines
Command	Jack Type
í &J0	Auxiliary relay is disabled

COMMUNICATION PROTOCOLS
Type:	Configuration
Format:	AT [cmds] Bn [cmds]
Description:	Selects the communication protocol for data calls
Command	Protocol
B0	ITU-T V.22 at 1200bps or V.21 at 300bps

COMMUNICATIONS MODE
Type:	Configuration
Format:	AT [cmds] &Mn [cmds]
Description:	Selects communications mode
Command	Mode
&M0	Asynchronous mode

COMMUNICATIONS MODE
Type:	Configuration
Format:	AT [cmds] &Qn [cmds]
Description:	Selects communications mode options
Command	Mode
&Q0	Asynchronous mode, serial port speed follows connect speed.

DATA SET READY (DSR)
Type:	Configuration
Format:	AT [cmds] &Sn [cmds]
Description:	Selects DSR options
Command	Function
&S0	DSR forced high

DATA TERMINAL READY (DTR)
Type:	Configuration
Format:	AT [cmds] &Dn [cmds]
Description:	Selects modem response to DTR
Command	Function
í &D0	DTR ignored
&D1	DTR toggle causes online command mode
&D2	DTR toggle causes modem to go on-hook

DIAL
Type:	Immediate
Format:	AT [cmds] D<#> [cmds]
Description:	Dials telephone number according to any modifiers included in the string
Note:	Any combination of modifiers can be used to produce the desired dial functions in sequence.
Command	Function
DL	Re-dial last number
DP	Pulse dialing enabled
DT	Tone dialing enabled/Pulse dialing disabled
DW	Dialing resumed following dial tone detection
D,	Dialing paused for amount of time specified in S8 register
D!	Flash function initiated. Modem commanded to go off-hook for specified time before returning on-hook.
D@	Wait for quiet Answer function enabled. Modem waits until a "quiet answer," a ring-back signal followed by silence up to the time specified in S7, is received prior to executing the rest of the dial string.
D;	Modem returned to idle state after dialing. The semicolon can only be placed at the end of the dial command.
D&	Calling card "Bong" detection enabled

FACTORY DEFAULT PROFILE
Type:	Configuration
Format:	AT [cmds] &F [cmds]
Description:	Sets values in active profile to values found in the default profile
Command	Function
&F0	Load factory configuration 0
&F1	Load factory configuration 1

FLOW CONTROL
Type:	Configuration
Format:	AT [cmds] &Kn [cmds]
Description:	Enables flow control options
Command	Function
&K0	Flow control disabled
&K3	RTS/CTS flow control enabled
&K4	XON/XOFF flow control enabled
&K5	Transparent XON/XOFF flow control enabled
&K6	Both RTS/CTS & XON/XOFF flow control enabled

LINE TYPE
Type:	Configuration
Format:	AT [cmds] &Ln [cmds]
Description:	Command nonfunctional; for compatibility purposes only.
Command	Line Type
&L0	Returns OK

REPORT INFORMATION
Type:	Immediate
Format:	AT [cmds] In [cmds]
Description:	Displays information requested
Command	Function
I0	Reports five digit product code
I1	Reports hardware variation code
I2	Reports DSP firmware revision
I3	Reports controller firmware revision, model, and interface type
I4	Reports ESS technology

SPEAKER VOLUME
Type:	Configuration
Format:	AT [cmds] Ln [cmds]
Description:	Controls speaker volume
Command	Function
L0	Speaker disabled
L1	Speaker on. Controlled by M command
L2	Speaker on. Controlled by M command
L3	Speaker on. Controlled by M command

STORE ACTIVE PROFILE
Type:	Configuration
Format:	AT [cmds] &Wn [cmds]
Description:	Writes the values for the active profile into the non-volatile RAM
Command	Function
&W0	Write the active profile to stored profile 0
&W1	Write the active profile to stored profile 1
&W2	Write the active profile to stored profile 2

TEST MODES
Type:	Immediate
Format:	AT [cmds] &Tn
Description:	Selects test options
Command	Function
&T0	End current test
&T1	Begin local analog loopback test

TRANSMIT CARRIER
Type:	Configuration
Format:	AT [cmds] Cn [cmds]
Description:	Command nonfunctional; for compatibility purposes only

AUTO-RETRAIN
Type:	Configuration
Format:	AT [cmds] %En [cmds]
Description:	Controls auto-retrain mode
Command	Function
í %E0	Auto-retrain disabled
%E1	Auto-retrain enabled
