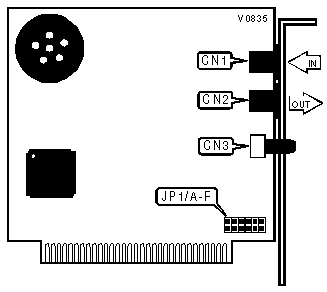

IDENTITY SYSTEMS TECHNOLOGY, INC.
ID2400
|
Modem Type |
Data (synchronous/asynchronous) |
|
Maximum Data Rate |
2400bps |
|
Data Bus |
8-bit ISA |
|
Data Modulation Protocol |
Unidentified |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Line in |
CN1 |
Volume control |
CN3 |
|
Line out |
CN2 | ||
|
PORT CONFIGURATION | ||||||
|
COM |
JP1/A |
JP1/B |
JP1/C |
JP1/D |
JP1/E |
JP1/F |
|
í COM2 |
Open |
Closed |
Open |
Closed |
Closed |
Open |
|
COM1 |
Closed |
Open |
Closed |
Open |
Closed |
Open |
|
COM3 |
Closed |
Open |
Closed |
Open |
Open |
Closed |
|
COM4 |
Open |
Closed |
Open |
Closed |
Open |
Closed |
