Card Type	Modem (asynchronous)
Chipset	Unidentified
Maximum Data Rate	9600bps
Data Modulation	Bell 103A, 212A ITU-T V.21, V.22, V.22bis, V.32
Error Correction/Compression	MNP5, V.42, V.42bis
Data Bus	8-bit ISA
Card Size	Full-height, one-third length

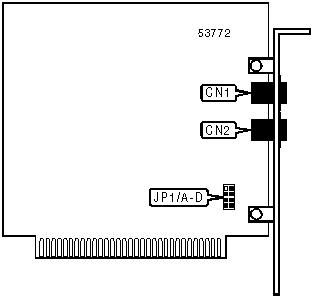

CONNECTIONS
Function	Label	Function	Label
Telephone line	CN1	Telephone line	CN2

SERIAL PORT ADDRESS SELECTION
Setting	JP1/A	JP1/B
3F8h (COM1:)	Open	Open
2F8h (COM2:)	Open	Closed
3E8h (COM3:)	Closed	Open
2E8h (COM4:)	Closed	Closed

INTERRUPT SELECTION
Setting	JP1/C	JP1/D
2	Closed	Closed
3	Open	Closed
4	Open	Open
5	Closed	Open

SUPPORTED STANDARD COMMANDS

Basic AT Commands

+++, ‘comma’, A/

A, C, D, E, F, H, L, M, N, P, Q, T, V, W, X, Y, Z

&C, &D, &F, &G, &K, &L, &P, &R, &S, &T, &V, &W, &Y, &Z

Extended AT Commands

\A, \B, \C, \G, \J, \N, \O, \Q, \T, \U, \V, \X, \Y, \Z

%A, %C, %E, %G

Special AT Commands

-C, -J, "H, "O

S-Registers

S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, S14, S16, S18, S21, S22, S23, S25, S26

S27, S30, S37, S95

Note: See MHI help file for complete information.
